XRMD21011102
XINDRAY

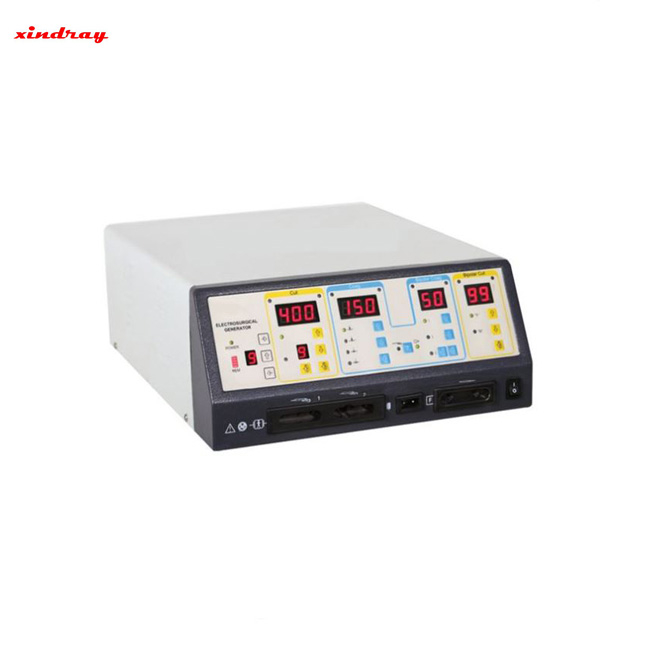

High Frequency Electrosurgical Unit
Products Feature
Technical Specification:
Main Frequency: 512 KHZ
Power Supply: 110V/60Hz;220V/50Hz
Weight: 8.00KG
Dimension: 34*16*47
High Frequency Leakage:
Monopolar: < 150mA; Bipolar < 60mA
Low Frequency Leakage:
Normal Polarity, Intact Chassis Ground: <10μA Normal Polarity, Ground open< 50μA Reverse Polarity, Ground Open< 50μA Sink Current, 140V Applied, All inputs < 50μA
Features:
1. The electrosurgical generator is used to control bleeding and surgical cutting in all general and open surgical procedures
2. Touch control panel, three-way power output, with different audible and visual indication during the process of outputting
3. Protection against over-voltage and over-current.
4. Convection refrigeration without ventilator.
5. Independent power for electrical cut, electrical coagulation and bipolar coagulation.
Application:
Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
