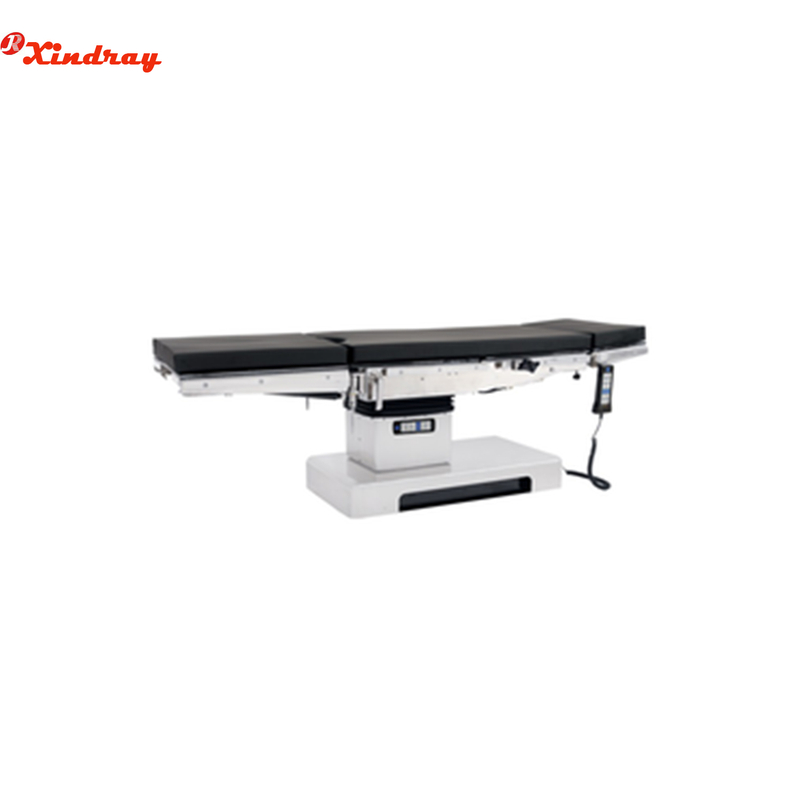

Electric Operating Table

Feature:

The super low level design can enable doctor to conduct operation sitting by operating table.The base seat and upright column covering are made of high quality 304 stainless steel which can be easily cleaned and sterilized.

The bed surface adopts imported carbon plastic plate, which can fulfill the needs of X-ray examination, photography.

The mattress is wrapped with quality artificial leather. High-density memory sponge is formed in one piece, with no seam.

Various actions are controlled according to electric hydraulic working principle and by remote controller.

Imported motor and solenoid valve

Imported sealing ring and is durable.

Electrical braking device which is easily for moving operating table.

Leg board controlled by gas spring.

Availability:
  • XRME220202422

  • XINDRAY

Electric Operating Table

13

Feature:


The super low level design can enable doctor to conduct operation sitting by operating table.The base seat and upright column covering are made of high quality 304 stainless steel which can be easily cleaned and sterilized.

The bed surface adopts imported carbon plastic plate, which can fulfill the needs of X-ray examination, photography.

The mattress is wrapped with quality artificial leather. High-density memory sponge is formed in one piece, with no seam.

Various actions are controlled according to electric hydraulic working principle and by remote controller.

Imported motor and solenoid valve

Imported sealing ring and is durable.

Electrical braking device which is easily for moving operating table.

Leg board controlled by gas spring.


Specification:


Mode XRME220210364
Table Length mm 2000±100
Table Width mm 520±20
Height Adjustment mm (560~860)±50
Trendelenburg / Rev-Trend ≥20° /   ≥18°
Tilt(Left) / Tilt(Right) ≥20°
Head board Upwards ≥50°
Head board Downwards ≥90°
Backboard Upwards ≥70°
Backboard Downwards ≥20°
Waist board lifting mm 100±20
Lumbar upper corner “∧” / Lumbar lower corner “∨” ≤160°/  ≤105°
Leg board Downwards ≥90°
Leg board Upwards ≥15°
Leg board Outwards ≥180°
Main Voltage AC 220V±22V,50Hz±1Hz
Input power VA 500±10%


1.Packing&Shipping2.72.5Our certificate XINDRAY MIC证书 NEW
