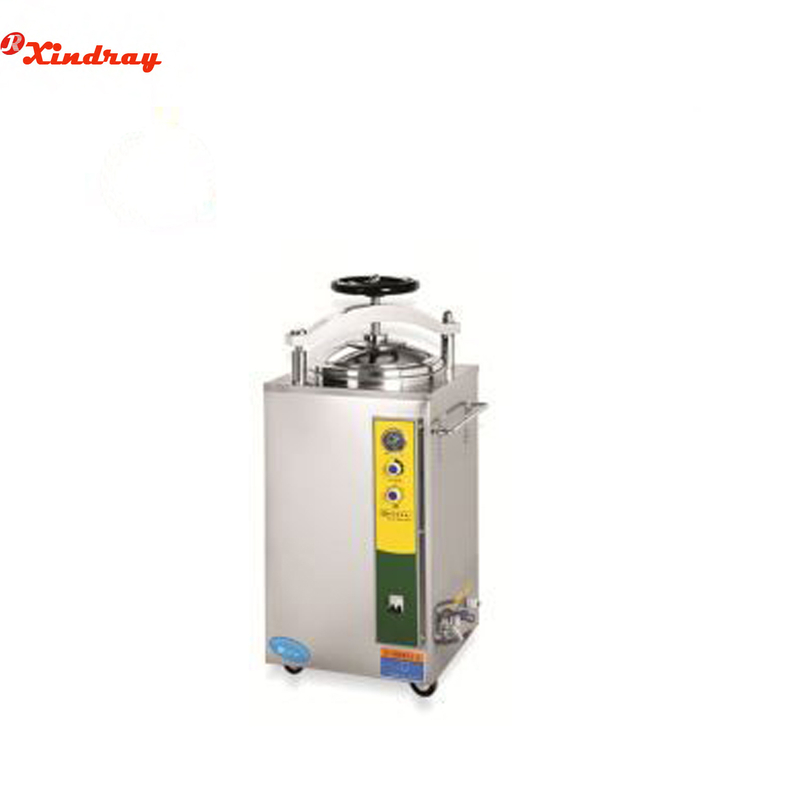

Automatic Vertical Sterilizer Machine
Home » Products » IVD Product » Autoclave Sterilizer » Automatic Vertical Sterilizer Machine

loading

Share to:
sharethis sharing button

Automatic Vertical Sterilizer Machine

Feature:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
Availability:
  • XRME210308165

  • XINDRAY

Automatic Vertical Sterilizer Machine

44

Feature:

l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel SUS304/AISI 304 -3mm
12.12months warranty
13.Possible to install drying system according request


Technical Data:


Chamber volume

35L
φ318*450mm

50L
φ340*550mm

75L
Φ400*600mm

100L
Φ440*650mm

Working pressure

0.22Mpa

Working temperature

134℃

Max. working pressure

0.23Mpa

Heat average

≤±1℃

Timer

0~60min

Adjustment of temperature

105~134℃

Power

2.5Kw/AC220V.50Hz

3Kw/AC220V.50Hz

4.5Kw/AC220V.50Hz

Overall dimension

450*450*1010

510*470*1130

560*560*1120

540*560*1250

Transport dimension

570*550*1150

590*590*1280

650*630*1280

680*630*1370

G.W/N.W

72Kg/56Kg

88kg/68Kg

100Kg/80Kg

110Kg/85Kg


1.Packing&Shipping2.72.5Our certificate XINDRAY MIC证书 NEW
