XRMD21011205
XINDRAY

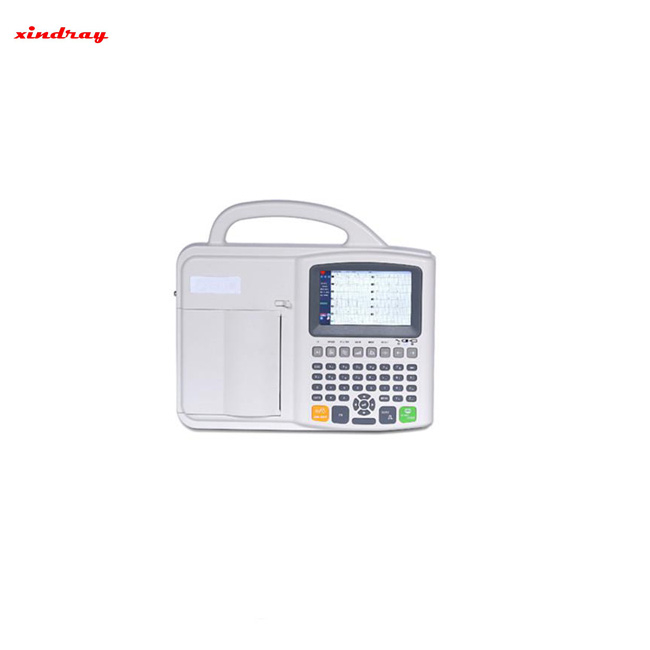

Digital Portable 6 Channel 12 Lead ECG Machine
Products feature
5.0” color TFT LCD display
Simultaneous 12 leads acquisition and 1, 1+1, 3 and 6 channel (Manual/Auto) recording with high resolution thermal printer
Manual/Auto working modes
Use digital isolation technology and digital signal processing
Baseline stabilization inspection
Full alphanumeric silicon keyboard
Support U disk storage
Support USB function (optional)
Technical Specification:
Lead: Standard 12 leads | Time Constant: ≥3.2s |
Acquisition: Simultaneous 12 leads | Frequency Response: 0.05Hz~250Hz |
A/D Converter: 14 bit | Noise Level: <15μVp-p |
Sampling Rate: 1000Hz | Sensitivity Threshold: <20μV |
Working Mode: Manual/Auto | Printer: Thermal printer |
Interference Filter: AC Filter and EMG Filter | Paper: 112mm*20m, roll |
CMMR: ≥100dB(with AC filter) | Page Speed: 6.25, 12.5, 25, 50mm/s(±3%) |
Input Circuit: Floating, protection circuit against defibrillator effect | Sensitivity: 10mm/mV(AUTO), 2.5, 5, 10, 20mm/mV |
Input Circuit Current: ≤0.1μA | Safe Class: GB9706.1, Class l, Type CF |
Input Impedance: ≥50MΩ | Power Supply: AC 220V(±10%), 50Hz±1Hz, Power ≤60VA AC 85~265V, 50/60Hz DC14.8V(2200mAh), rechargeable Li-ion battery |
Patient Current Leakage: <10μA | Dimension: 310mm*270mm*73mm |
Calibrating Voltage: 1mV±2% | Weight: 1.75kg(with battery) |
Polarization Voltage Tolerance: ≥±500mV |
