XRME20220301015
XINDRAY
Description:

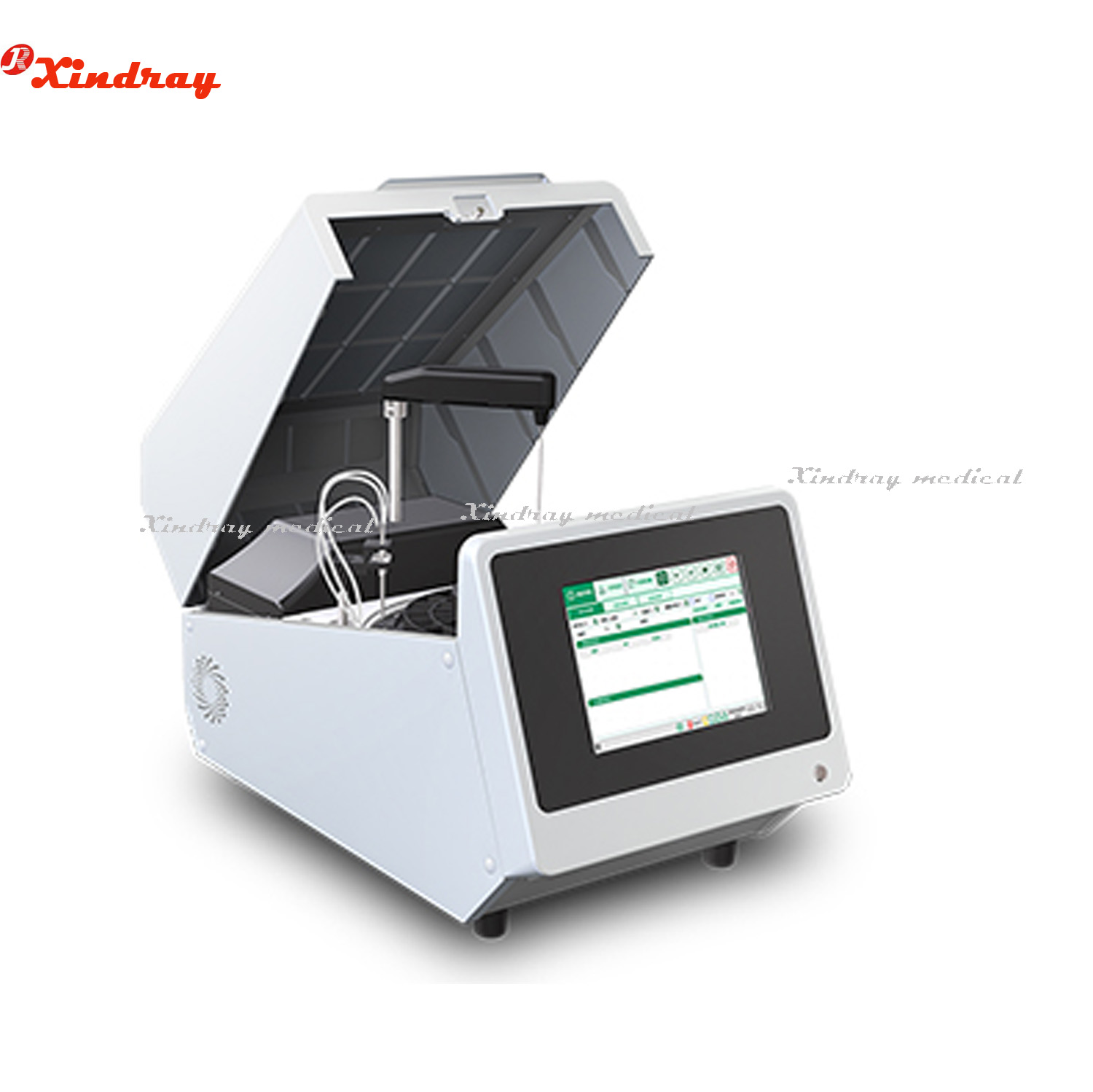

it is the smallest and most integrated chemistry analyzer, which is perfect for low volume laboratories.
It optimizes the use of space in the laboratory by providing full functionality in small space.
Standardized operation, which is consistent with larger analyzers, eliminates manual errors and makes test results more reliable.
The robust system prolongs uptime and increases productivity of lab.
The easy automated testing improves the workflow and mitigates manual labour, together with its cost-effectiveness, making it possible to bring benefits of automatic chemistry to all laboratories.
Specifications:
| Throughput | Up to 120 tests per hour |
| Reagent tray | 40 reagent positions with refrigeration |
| Sample tray | 20 sample positions |
| Reaction tray | 81 reusable cuvettes,auto cuvette washing station |
| Wavelength | 8 wavelengths:340nm,405nm,450nm,510nm, 546nm,578nm, 660nm, 670nm |
| Screen | 10.4 inch color touch screen |
| Data storage | 100,000 results |
| Power supply | AC 100~240V,50/60Hz,≤ 150VA |
| Dimension | 384mm*640mm*410mm(Width*Depth*Height) |
| Weight | 30 Kg |
| Packing size | 78.3*54.2*65.6cm |
| GW | 54.5kg |
Advantages:
Efficient:
Up to 120 tests per hour
Fast start-up and shut-down process
User-friendly software
Removable reagent disk
Auto cuvette washing station
Economical:
Minimum reaction volume 150μL
Reusable cuvettes
Few consumables
Low water consumption
Halogen lamp with long lifespan
Optional reagent closed system
Integrated:
Small footprint on the desk
Big reagent and sample compartment
Built-in computer with touch screen
Built-in thermal printer
Complete solution with reagents
Powerful data transmission with USB, Ethernet, RS232
Intelligent:
Reagent inventory monitoring
Auto reagent cooling
Accurate probe pipetting technique
Auto probe washing reduces carry-over
Simultaneous dual-wavelength measuring
Description:
it is the smallest and most integrated chemistry analyzer, which is perfect for low volume laboratories.
It optimizes the use of space in the laboratory by providing full functionality in small space.
Standardized operation, which is consistent with larger analyzers, eliminates manual errors and makes test results more reliable.
The robust system prolongs uptime and increases productivity of lab.
The easy automated testing improves the workflow and mitigates manual labour, together with its cost-effectiveness, making it possible to bring benefits of automatic chemistry to all laboratories.
Specifications:
| Throughput | Up to 120 tests per hour |
| Reagent tray | 40 reagent positions with refrigeration |
| Sample tray | 20 sample positions |
| Reaction tray | 81 reusable cuvettes,auto cuvette washing station |
| Wavelength | 8 wavelengths:340nm,405nm,450nm,510nm, 546nm,578nm, 660nm, 670nm |
| Screen | 10.4 inch color touch screen |
| Data storage | 100,000 results |
| Power supply | AC 100~240V,50/60Hz,≤ 150VA |
| Dimension | 384mm*640mm*410mm(Width*Depth*Height) |
| Weight | 30 Kg |
| Packing size | 78.3*54.2*65.6cm |
| GW | 54.5kg |
Advantages:
Efficient:
Up to 120 tests per hour
Fast start-up and shut-down process
User-friendly software
Removable reagent disk
Auto cuvette washing station
Economical:
Minimum reaction volume 150μL
Reusable cuvettes
Few consumables
Low water consumption
Halogen lamp with long lifespan
Optional reagent closed system
Integrated:
Small footprint on the desk
Big reagent and sample compartment
Built-in computer with touch screen
Built-in thermal printer
Complete solution with reagents
Powerful data transmission with USB, Ethernet, RS232
Intelligent:
Reagent inventory monitoring
Auto reagent cooling
Accurate probe pipetting technique
Auto probe washing reduces carry-over
Simultaneous dual-wavelength measuring
