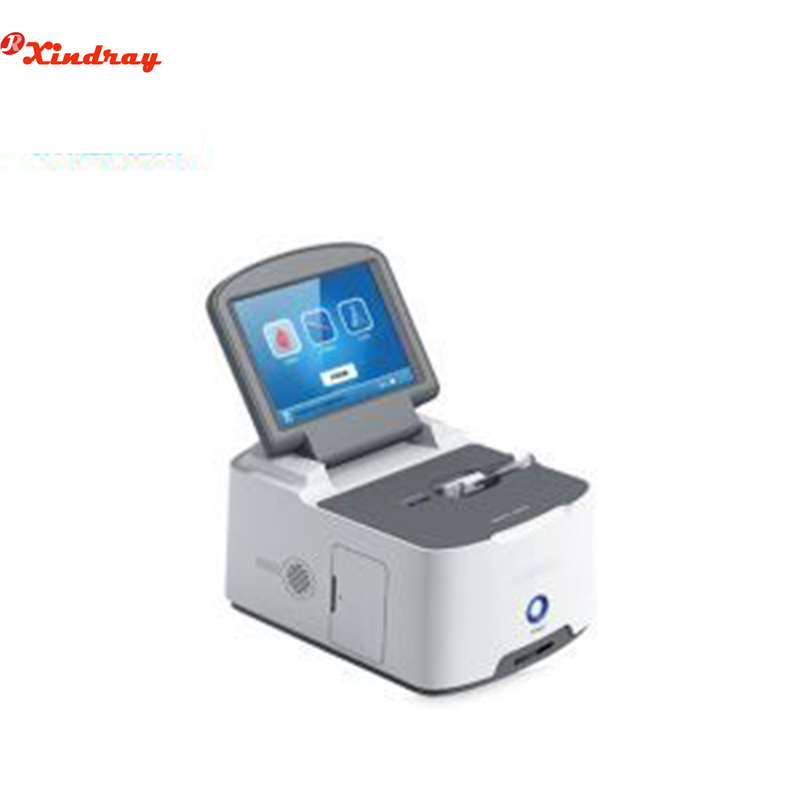

Clinical Laboratory Instruments Chemiluminescence Immunoassay Analyzer

Feature:

1.Sample Tray:
Disc design, up to 60 samples loading capacity per batch
The position of sample, standard product and quality control positions can be edited
Support emergency function.

2.Reagent Tray:
Patented semiconductor refrigeration technology
Up to 30 reagent position on board with refrigeration at 2-8ºC
Up to 30 items can be tested at the same time.

3.Washing and mixing module:
Three-level cleaning mode, higher cleaning efficiency;
Non-contact mixing to avoid cross-contamination.

4.Sample Probe:
Excellent rinsing system make carry-over ≤10-5
Liquid-level and blood coagulation detection system
Intelligent anti-collision function
Sampling volume: 15ul-100ul

5.RV Loading Module:
Independent reaction vessel
Up to 1200 pcs per batch with continues loading
Automatically supply reaction vessel
Intelligently detect the amount of RV

6.Incubation plate:
80 incubation positions
Constant 37°C incubation

7.Instrument Software:Flexible sample test mode: STAT function, automatic dilution, reset function, continuous loading
Reagent management: the remaining amount, calibration validity, expiry date management
Consumables management: continuous monitoring and low-level warning
Result management: store search, print and statistics, automatic unit conversion function
LIS/HIS connection Auto daily maintenance
