This intelligent product is designed for small-middle hospital.
It has the features including: pure cutting, blend 1, blend 2, monopolar contact coagulation, bipolar standard coagulation and so on. Monopolar electrode can be hand or foot-controlled, while bipolar electrode can be automatic and foot controlled. The output power can be digital displayed. The malfunction can be self-diagnosed by the system, and error code will be displayed, with visual and audio alarm. The system has NE CONTINUITY MONITOR, intended for connections. as well as Neutral electrode contact quality monitor (CQM), intended for connection to a MONITORING NE (split plates) providing an alarm in the event that NE contact with the PATIENT becomes insufficient. This system can be used together with the endoscope, to perform endoscopic surgery.
XRME220210303
XINDRAY

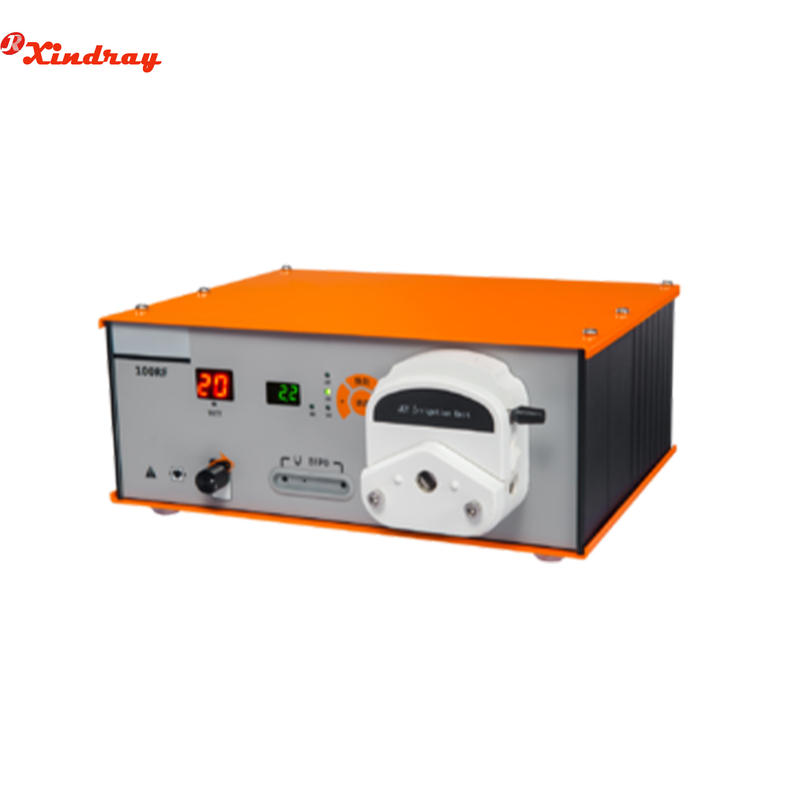

High Frequency Electrosurgical Unit with Drip Cooling Pump
Feature:
This intelligent product is designed for small-middle hospital.
It has the features including: pure cutting, blend 1, blend 2, monopolar contact coagulation, bipolar standard coagulation and so on. Monopolar electrode can be hand or foot-controlled, while bipolar electrode can be automatic and foot controlled. The output power can be digital displayed. The malfunction can be self-diagnosed by the system, and error code will be displayed, with visual and audio alarm. The system has NE CONTINUITY MONITOR, intended for connections. as well as Neutral electrode contact quality monitor (CQM), intended for connection to a MONITORING NE (split plates) providing an alarm in the event that NE contact with the PATIENT becomes insufficient. This system can be used together with the endoscope, to perform endoscopic surgery.
Technical Specifications | ||
Power: | 220V±22V，50/60 Hz(110V±11V，50/60Hz) | |
Operating Frequency: | Monopolar: 330/430KHz | |
Bipolar: 1M KHZ | ||
Power Rating: | 800VA±10% | |
Operating Mode: | Mono-polar Cut | |
Pure Cut: | 0~300W(Load 500Ω) | |
ENDOCUT | 20~60W(Load 500Ω) | |
Blend 1: | 0~100W(Load 300Ω) | |
Mono-polar Coag | ||
Contact Coag: | 0~120W(Load 500Ω) | |
Forced Coag: | 20~60W(Load 500Ω) | |
Soft Coag: | 0~50W(Load 500Ω) | |
Bipolar | ||
Bipolar Coagulation: | 0~100W(Load 100Ω) | |
Bipolar AUTO | 0~100W(Load 100Ω) | |
Working Environment | Endoscopy , Under water surgery | |
Surgery Type | Ordinary Surgery as General Endoscopy Urology Orthopeadic Thoracic Surgery Neurosurgery Equipped with an external interface to collect with various type of endoscope used for surgery | |
High Frequency Electrosurgical Unit with Drip Cooling Pump
Feature:
This intelligent product is designed for small-middle hospital.
It has the features including: pure cutting, blend 1, blend 2, monopolar contact coagulation, bipolar standard coagulation and so on. Monopolar electrode can be hand or foot-controlled, while bipolar electrode can be automatic and foot controlled. The output power can be digital displayed. The malfunction can be self-diagnosed by the system, and error code will be displayed, with visual and audio alarm. The system has NE CONTINUITY MONITOR, intended for connections. as well as Neutral electrode contact quality monitor (CQM), intended for connection to a MONITORING NE (split plates) providing an alarm in the event that NE contact with the PATIENT becomes insufficient. This system can be used together with the endoscope, to perform endoscopic surgery.
Technical Specifications | ||
Power: | 220V±22V，50/60 Hz(110V±11V，50/60Hz) | |
Operating Frequency: | Monopolar: 330/430KHz | |
Bipolar: 1M KHZ | ||
Power Rating: | 800VA±10% | |
Operating Mode: | Mono-polar Cut | |
Pure Cut: | 0~300W(Load 500Ω) | |
ENDOCUT | 20~60W(Load 500Ω) | |
Blend 1: | 0~100W(Load 300Ω) | |
Mono-polar Coag | ||
Contact Coag: | 0~120W(Load 500Ω) | |
Forced Coag: | 20~60W(Load 500Ω) | |
Soft Coag: | 0~50W(Load 500Ω) | |
Bipolar | ||
Bipolar Coagulation: | 0~100W(Load 100Ω) | |
Bipolar AUTO | 0~100W(Load 100Ω) | |
Working Environment | Endoscopy , Under water surgery | |
Surgery Type | Ordinary Surgery as General Endoscopy Urology Orthopeadic Thoracic Surgery Neurosurgery Equipped with an external interface to collect with various type of endoscope used for surgery | |
