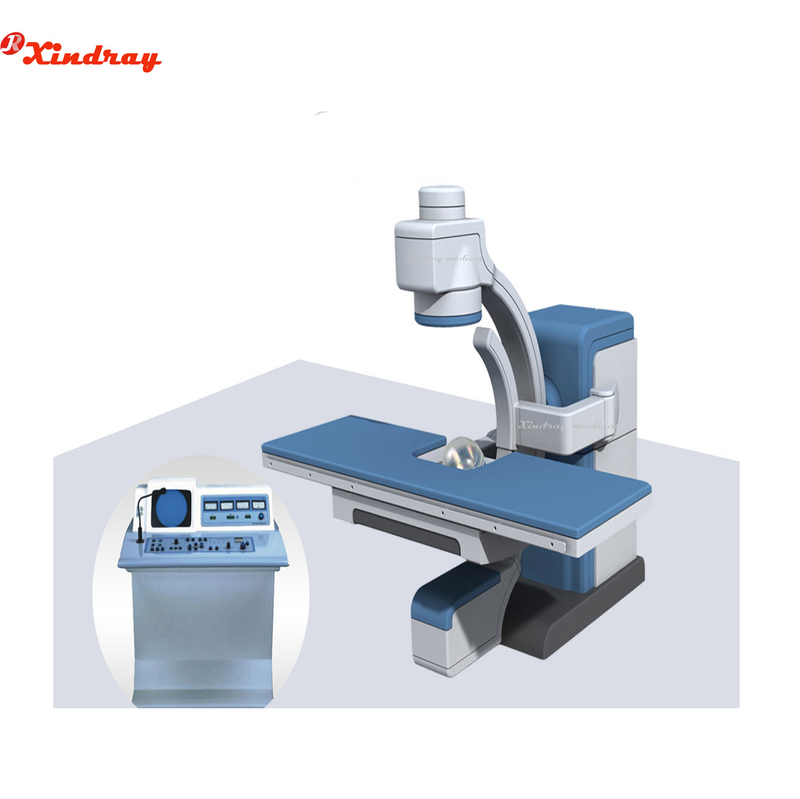

Xr-XTS X-ray Position ESWL Machine
Features:
Usage:
Orthopaedics:osteopathy, diaplasis, nailing
Surgery: removing foreign body, cardiac catheter, implanting pace maker, interventional therapy, partial radiography, local photography, and other work.
1. With a compact appearance, and easy to operate
2. Unique base electric auxiliary support arm design, it's more security for using.
3. A unique hand-held controller design, convenient to operate
4. With a high-quality knockdown X-ray generator to reduce radiation
5. With the Perspective KV,MA automatically track fluoroscopy to make the image brightness and clearness optimum
6. Toshiba image intensifier, the quality is stable and reliable, a good image clarity
7. Clinical Video system with high performance,8 images storage volume, and three 14inchhigh-resolution monitors
8. Installation of dense grain grids, to further enhance image sharpness
Specifications:
Application scope
Urinary system calculus
Environmental condition
1,Ambient temperature 15~35ºC
2,Relative humidity 45~85%
3.Atmospheric pressure 86~106kPa
4.Power requirements AC 3N~220V±10% 50±1Hz, PW≤5kW
5.Water requirements: demineralized water
6.Space requirements
(1) Main room area ≥4m×4m×2.5m
(2) Operate room area ≥2m×4m.
(3) Main room request equip with X-ray protection function
Electromagnetic shock wave generator
1,High-voltage discharge range: 5~11KV
2,Energy level: 5~24J
3,The second focus shock wave pressure field parameters:
(1) Plus front ≤0.5us
(2) Plus width ≤1us
(3) Focal zone Radial±7.5mm,Axial±12.5mm
(4) Shrinking pressure: 20-50MPa
(5) Penetration ≥130mm
4,Shock wave generator move spherical centered on focus area.
5,Shock wave generator adopted EM shock wave source
Locate system
1, X-ray locate system(C -arm single X-ray two way locate)
(1) X-ray tube voltage 50~110KV;
(2)X-ray tube current ≤5mA;
(3)X-ray image definition ≥14LP/ mm;
(4) High resolution image intensifier and high definition CCD camera.
2,B-ultrasound locate system
(1) Probe axis line
Probe do linear motion around focal point caused inaccuracy ≤±2mm
Probe do circus movement around focal point caused inaccuracy ≤±2mm
(2) Inaccuracy between probe surface and the second focal point <2mm
FAQ
1. What is the warranty for your products?
The free warranty is one year from the day on which customers have received goods
2.How long is the validity of quotation?
Generally,the price is valid within one month from the date of quotation.
3.What is your payment term?
T/T in advance, Western Union, MoneyGram, Cash, Trade Assurance etc.
4.What is your order process?
Generally, Confirm Proforma Invoice, Payment through T/T in advance, Production, Shipping the goods to your country
5.Do you have the certificate ?
Yes, most of our products have the CE ISO certificate.
6.May we visit your factory?
Welcome to our factory, please let us know your visiting schedule in advance, we will prepare for you.
