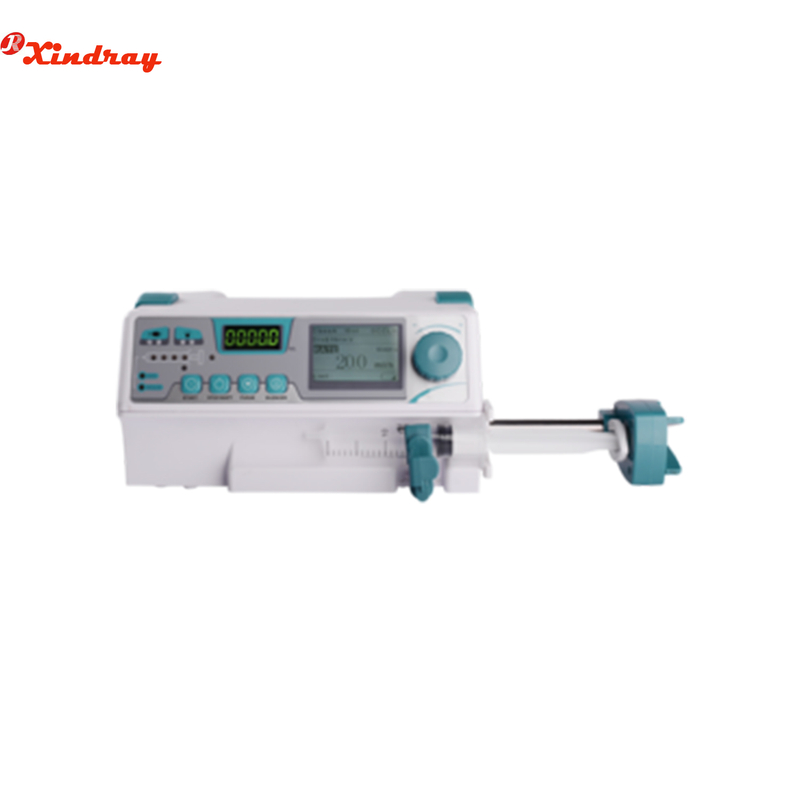

XRME220206367
XINDRAY
Feature:
1. 4.3 inches Large LCD screen, with different colors show.
2. With LCD backlight, can use in various lighting conditions.
3. Time display, convenience for show and time memory.
4. Simultaneous display: Time, Battery, Injection State, Mode, Speed, Injection volume and time, Syringe Size, Alarm sound, Block, Accuracy, Body weight, Drug, dose and liquid amount
5. Remote control function, can adjust speed, time, volume and drug amount directly, easier operation, save doctor and nurse's time
Specification:
| Model | XRME220206367 |
| Injection Rate | 50/60ml Syringe: 0.1ml/h~1500ml/h (0.1ml/h step) |
| 30ml Syringe: 0.1ml/h~900.0ml/h (0.1ml/h step) | |
| 20ml Syringe: 0.1ml/h---600ml/h (0.1ml/h step) | |
| 10ml Syringe: 0.1ml/h---300ml/h (0.1ml/h step) | |
| Rate Accuracy | Within±3% (after correct calibration) |
| Mechanical Accuracy | Within±2% |
| Maximum Stackable | 8pcs |
| Purge Rate | 50(60)ml Syringe: 1500ml/h |
| 30ml Syringe: 900ml/h | |
| 20ml Syringe: 600ml/h | |
| 10ml Syringe: 300ml/h | |
| Bolus Rate | 50(60)ml Syringe: 0.1---1200ml/h, volume 1.0-5.0ml |
| 30ml Syringe: 0.1---720ml/h, volume 1.0-10.0ml | |
| 20ml Syringe: 0.1---480ml/h, volume 1.0-10.0ml | |
| 10ml Syringe: 0.1---240ml/h, volume 1.0-10.0ml | |
| Anti-Bolus | YES |
| Volume Limit | 0.1ml---9999.9ml (0.1ml step) |
| Total Injection | 0.1ml---9999.9ml (0.1ml step) |
| Maximum infusion pressure | 150kPa |
| Occlusion | High 800mmHg±200mmHg (106.7kPa±26.7kPa) |
| Medium 500mmHg±100mmHg (66.7kPa±13.3kPa) | |
| Low 300mmHg±100mmHg (40.7kPa±13.3kPa) | |
| Audible and Visible Alarms | Occlusion、Equipment failure、Software Exception、Injection finish、Limited finished、Battery running out、Improperly installed,Abnormal operation etc. |
| Power Source | 100-240Vac, 50/60Hz; Internal rechargeable Li battery, capacity≥1,800mAh, voltage=11.1V, 4 hours backup time at the rate of 25ml/h (appointed medium rate in IEC60601-2-24) for the new battery charged for 12hours. To facilitate the use in some special occasions, the machine's DC outlet can be an external DC 12V 2A standby power supply. |
| KVO Speed | 0.1~5ml/h (0.1ml/h step) |
| Fuse: | T2AH/250V, 2pcs installed |
| Power Consumption | 35VA |
| Equipment Classification | Class II, internal power supply, Type CF |
| IP Classification | IPX2 |
| Operation Environment | a) Ambient temperature: +5℃~+40℃ |
| b) Relative humidity: 20%~90% | |
| c) Atmospheric pressure: 86.0kPa~106.0kPa | |
| Transport & Storage Condition | a) Ambient temperature: -20℃~+55℃ |
| b) Relative Humidity: ≤95% | |
| c) Atmospheric pressure: 50.0kPa~106.0kPa | |
| Syringe | Compatible with 10ml, 20ml, 30ml, 50/60ml syringe of any brands after correct calibration |
| Syringe maximum value ( under single fault condition) | 1ml |
| Dimension | 280mm(L) x 210mm(W) x 130mm(H) |
| Net Weight | 2.2Kg |
| Package Reference | 1pc Carton: 3.2Kg, 36cm(L) x 29cm(W) x 18cm(H) |
| 2pcs Carton: 7.2Kg, 39cm(L) x 38cm(W) x 31cm(H) | |
| 3pcs Carton: 10.7Kg, 58cm(L) x 38cm(W) x 31cm(H) |
