XRMD21010508
XINDRAY

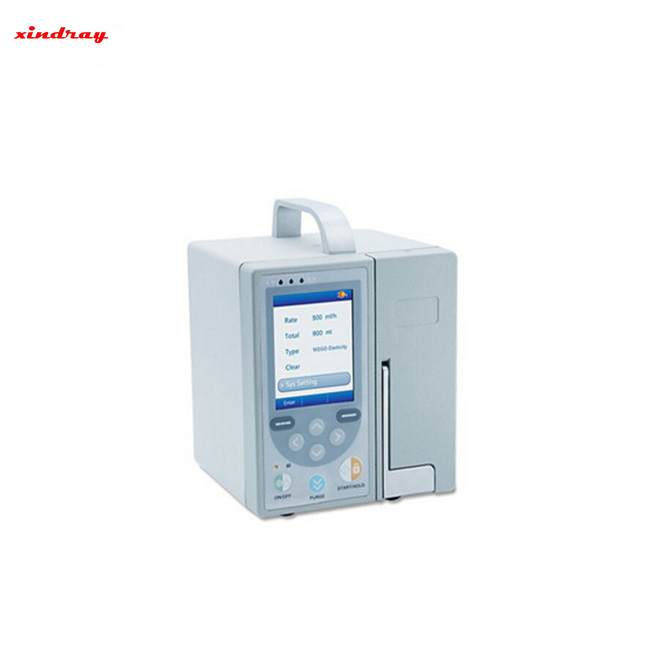

Medical Portable Volumetric Infusion Pump
Product features
Specifications:
1. High-accuracy infusion control, compatible with most standard IV Sets.
2. Reminding of starting infusion, and residual time display.
3. Alarm threshold of air bubble and pressure can be adjusted, and alarm volume is also adjustable.
4. Accompanying IV-set clamp prevents liquid flowing freely if the pump door opens accidentally.
5. A.B.S——ANTI BOLUS system prevents a moment's high-dose injection from the sudden obstruction disappearing.
6. Automatic flow shut-off during alarms. (except for "NEAR END", "KVO", and "LOW BATTERY" alarms)
7. Compact aluminium enclosures and robust construction.
8. Chinese and English are optional.
9. USB port is convenient for technical personnel to update software.
10. The versatile bracket enables mounting the pump on infusion pole in many directions , which can save the space.
11. Suppliers can calibrate to the new IV set provided by user, and input parameters into infusion pump to ensure accuracy.
Flow rate | 1ml/h~699ml/h |
Bolus rate | 699ml/h |
Preset volume range | 1ml~999ml |
Infusion accuracy | ±5% |
KVO rate | 1~5ml/h(keep vein open, KVO infusion rate) |
Display information | Infusion rate, accumulated infusion volume, infused volume, residual time |
Alarm functions | Infusion reminding, door open, occlusion, air bubbles, near end, KVO state, low battery, battery runs up |
Occlusion pressure | 10kPa~300kPa |
Safety Classification | Class I, Type BF |
Water-proof | IPX1 |
Working mode | Continuous operation |
Power supply | AC 220V/50Hz or DC 12V Built-in rechargeable lithium-polymer battery, 7.4V/3700mAh |
Accessories | Versatile bracket Power cord User Manual |
