1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Automatically controlled by computer
5.Digital display of working status,touch of key
6.Over temperature&over pressure auto-protection
7.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry
8.Self-inflating type seal
9.Safe protection of water lacking
10.The drying system is optional,which can be equipped according to the customers' request
XRME220308289
XINDRAY

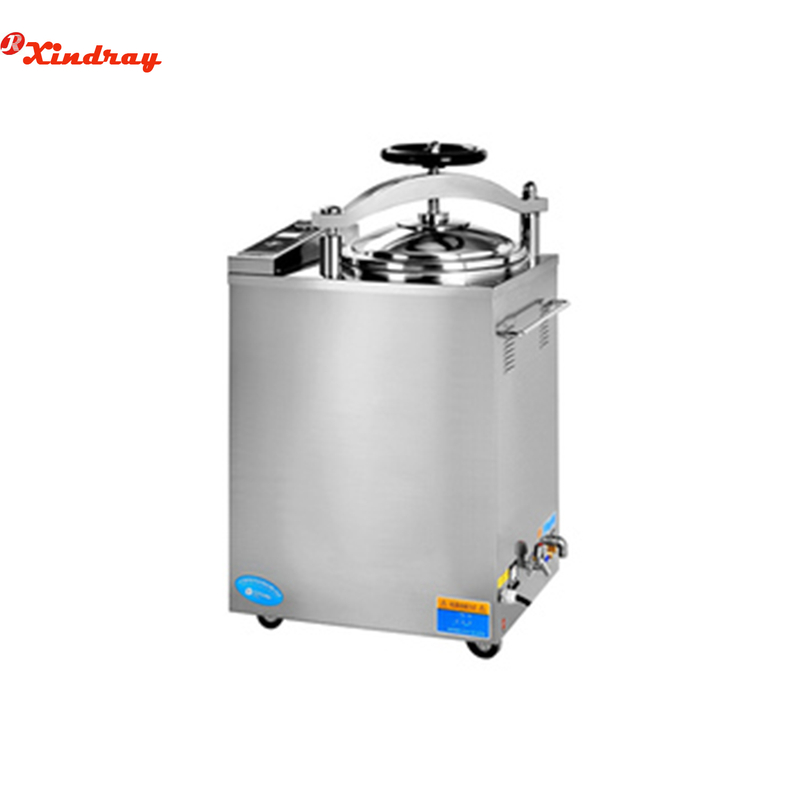

Electricl-Heated Vertical Steam Sterilizer (Fully automatic microcomputer)
Feature:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Automatically controlled by computer
5.Digital display of working status,touch of key
6.Over temperature&over pressure auto-protection
7.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry
8.Self-inflating type seal
9.Safe protection of water lacking
10.The drying system is optional,which can be equipped according to the customers' request
Model technical data | XRME220308289 | XRME220308290 | XRME220308291 | XRME220308292 |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.22MPa | 0.22MPa | ||
Working temperature | 134℃ | 134℃ | ||
Max working pressure | 0.23 Mpa | 0.23 Mpa | ||
Heat average | ≤±1℃ | |||
Timer | 0～99min or 0～99hour59 min | |||
Adjustment of temperature | 0～134℃ | 0～134℃ | ||
Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension | 600×410×1030(mm) | 650×410×1140(mm) | 690×470×1140(mm) | 730×510×1270(mm) |
Transport dimension | 730×500×1170(mm) | 730×500×1290(mm) | 760×550×1290(mm) | 820×600×1380(mm) |
G.W/N.W | 96Kg/ 77Kg | 102Kg/ 83Kg | 120Kg/98Kg | 135/110Kg |
Electricl-Heated Vertical Steam Sterilizer (Fully automatic microcomputer)
Feature:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Automatically controlled by computer
5.Digital display of working status,touch of key
6.Over temperature&over pressure auto-protection
7.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry
8.Self-inflating type seal
9.Safe protection of water lacking
10.The drying system is optional,which can be equipped according to the customers' request
Model technical data | XRME220308289 | XRME220308290 | XRME220308291 | XRME220308292 |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.22MPa | 0.22MPa | ||
Working temperature | 134℃ | 134℃ | ||
Max working pressure | 0.23 Mpa | 0.23 Mpa | ||
Heat average | ≤±1℃ | |||
Timer | 0～99min or 0～99hour59 min | |||
Adjustment of temperature | 0～134℃ | 0～134℃ | ||
Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension | 600×410×1030(mm) | 650×410×1140(mm) | 690×470×1140(mm) | 730×510×1270(mm) |
Transport dimension | 730×500×1170(mm) | 730×500×1290(mm) | 760×550×1290(mm) | 820×600×1380(mm) |
G.W/N.W | 96Kg/ 77Kg | 102Kg/ 83Kg | 120Kg/98Kg | 135/110Kg |
