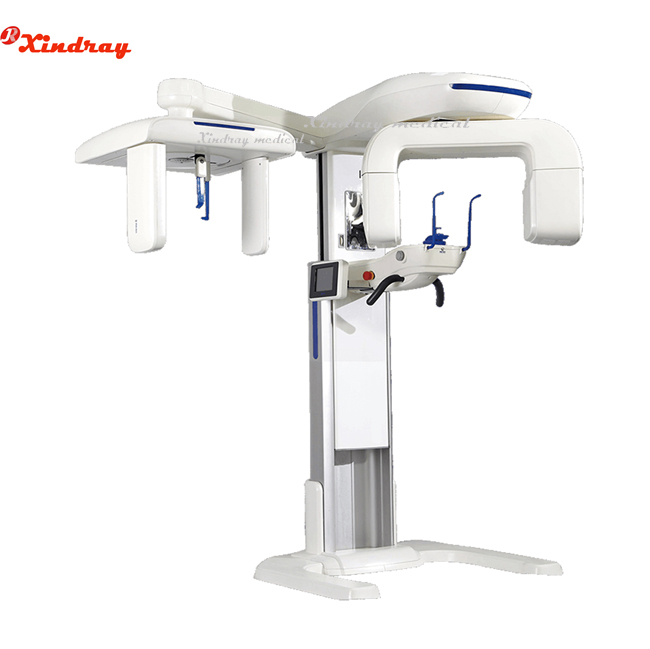

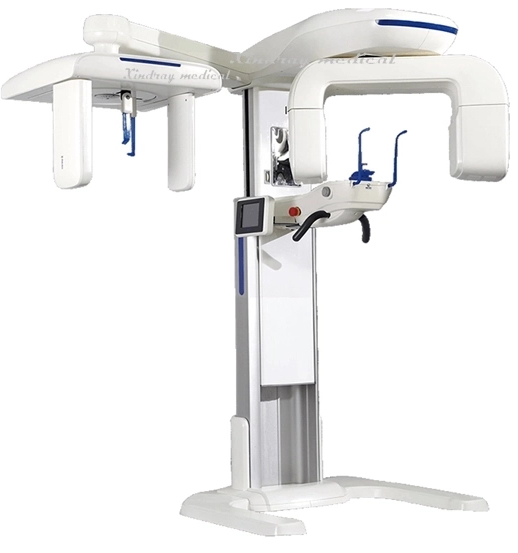

XrDX-2DE Digital Panoramic Dental X-ray Machine
Features:
Max resolution panoramic images;
Laser beam alignment;
Easy to use 3D imaging up-gradable.
Compact control panel with intuitive symbols and display;
Remote X-ray controlled key pad
Pulse X-ray generator
Focal spot 0.5
Voltage: 60-90kV
Current:2-10mA
Exposure time: 15-20s
Heat dissipation and load management for waiting time reduction
Source image distance: 65cm
Dental arch vertical magnification: <30%
Vertical travel of occlusal plane reference point: 90-176cm
Panoramic projections:
1. Adult standard with constant vertical magnification of the dental arch;
2. Child panoramic;
3. Front view of maxillary sinuses
Accessories for positioning:
- bite block
-chin rest
-optional temporo-mandibular adjustable resting bars
Carriage translation
- motorized for vertical movements
- free standing base unit (wheel chair accessible
Net weight: 400KG
Digital receiver
COMOS sensor
Spatial resolution >5 line pairs per mm
Acquisition dynamics on 12 levels, 16-bits internal processing
Connection to computer via Gigabit network port
FAQ
1. What is the warranty for your products?
The free warranty is one year from the day on which customers have received goods
2.How long is the validity of quotation?
Generally,the price is valid within one month from the date of quotation.
3.What is your payment term?
T/T in advance, Western Union, MoneyGram, Cash, Trade Assurance etc.
4.What is your order process?
Generally, Confirm Proforma Invoice, Payment through T/T in advance, Production, Shipping the goods to your country
5.Do you have the certificate ?
Yes, most of our products have the CE ISO certificate.
6.May we visit your factory?
Welcome to our factory, please let us know your visiting schedule in advance, we will prepare for you.
