XRMD21010305
XINDRAY

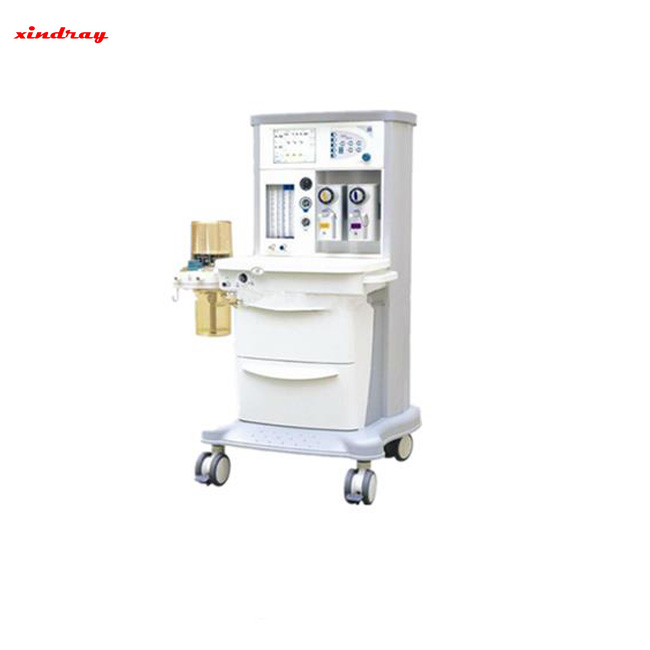

CE Approved Hospital Anesthesia Machine Equipment
Products feature
Applied for closed, semi-closed, semi-open inhalation anaesthesia, controlled or assisted ventilation, monitoring and displaying patients’ ventilation parameters, applied for child and adult
Good air tightness, easy to be operated, cleaned and disinfected.
Advanced temperature, flow and pressure compensation technologies.
Colour TFT screen displaying sorts of monitoring parameters.
Ventilator Specification:
Modes of ventilation | IPPV: Intermittent Positive Pressure Ventilation SIMV: Synchronized Intermittent Mandatory Ventilation Manual: Manual SIPPV: Synchronized Intermittent Positive Pressure Ventilation PCV: Pressure Control ventilation SIGH: SIGH |
Ventilator parameter | Working type: Electronically controlled, pneumatic driven Tidal Volume range: 20-1500ml Pressure range: 5-80 mbar Rispriation Rate Range: 1-99bpm (1-40bpm under SIMV) I:E Range: 4:1-1:8 Ptrigger Range: -20-20cmH2O Minute volume range: >18L/Min |
System Standard | Hypoxic guard system: N2O cut-off valve, O2 concentration<25% Safety valve: <12.5kPa Fresh gas compensation: 25-75L/min Flow meter: Cascade, 0-10L/min Volume of CO2 absorber: 1.5L Vaporizer: 1 selectetac, maximum 2 mounts(Isoflurane/Enflurane/Sevoflurane/Halothane) |
Alarm Limits | Audio/Visual: No tidal volume, MV, Paw, FiO2 limitation O2, Air failure, AC power failure, backup low |
Pipeline supply | Gas configuration: O2, N2O, Air Pipeline input range: 280-600kPa |
Battery Power | Battery Type: Lead-acid 12V, 4Ah Run-time: Typical 30 mins+, up to 2hrs |
Pre-setting functions | Language: ENGLISH Calibration: Automatic |
Applications | Patient range: Adult/Paediatrics |
PEEP (Optional) | Type: Integrated, Electronic control Range: OFF, 0-30cmH2O |
Optional | ACGO: Auxiliary Common Gas Outlet Vaporizer: Selectatec Yoke system(Pin-index): Support 11L cylinder, O2/N20 AGSS: Anaesthetic Gas Scavenging Systems |
Environmental Conditions | Operating Temp: 5℃~40℃ Storage Temp: -10℃~+40℃ Humidity: ≤80% Atmosphere pressure: 960hpa~1040hpa |
