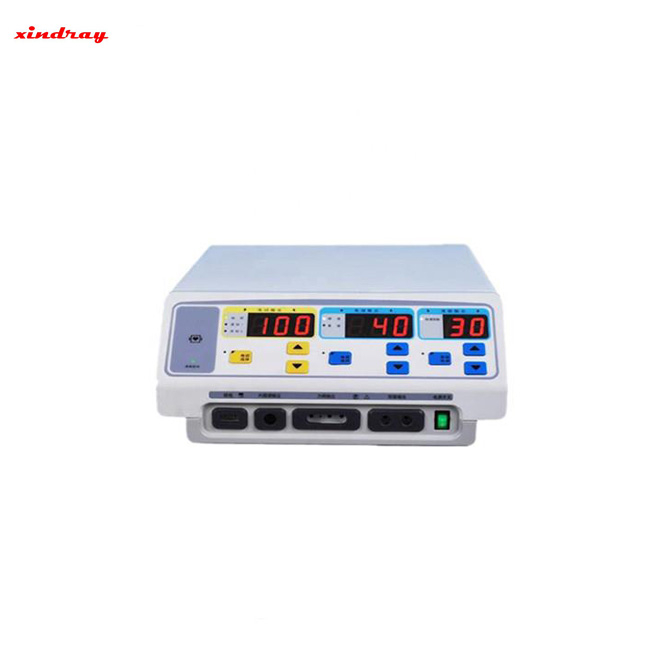

Electric Surgical Diathermy Machine

Electric Surgical Diathermy Machine

Products feature

The output power: 300W

The six output modes: pure cut the mixed cut 1 mixed cut 2 spray concrete the soft the standard bipolar coagulation

The entire microcomputer control, three output power digital display output with different indications of acousto-optic

It can be matched with laparoscopy, hysteroscopy using, applicable to branches class operation

We have the plate detection system (REM), power compensation system (PPS)

It has a remote control to adjust the output function pen

- no external fan cooling, suitable for laminar flow operation room

The technical parameters:

1. the environmental temperature range: 5 to 40 DEG c;

2. the relative humidity range: less than or equal to 80;

3. the atmospheric pressure range: 86 ~ 106.0kPa;

4. power: 220V + 22V, 50Hz + 1Hz.

5. working frequency: 416KHz

6. the rated output power:

A) pure cut: 1W ~ 300W (load of 800 ohm);

B) 1: 1W ~ 200W mixed cutting (load of 800 ohm);

C) 2: 1W ~ 250W mixed cutting (load of 800 ohm);

D) shotcrete: 1W ~ 80W (load of 800 ohm);

E) soft coagulation: 1W ~ 120W (load of 800 ohm);

F) bipolar coagulation: 1W ~ 50W (load of 200 ohm);

7. the whole power consumption: less than 1100VA.

8. transportation and storage:

a) the ambient temperature range: 40 to 55 DEG c;

b) The relative humidity range: less than or equal to 95%;

C) atmospheric pressure range: 500hPa ~ 1060hPa.

The standard configuration:

Electric knife pen 5, neutral electrode 10, plate wire 1, 1 sets of bipolar forceps and special cable, cleaning tablets 1, switch 1 feet
