XRME20220301019
XINDRAY

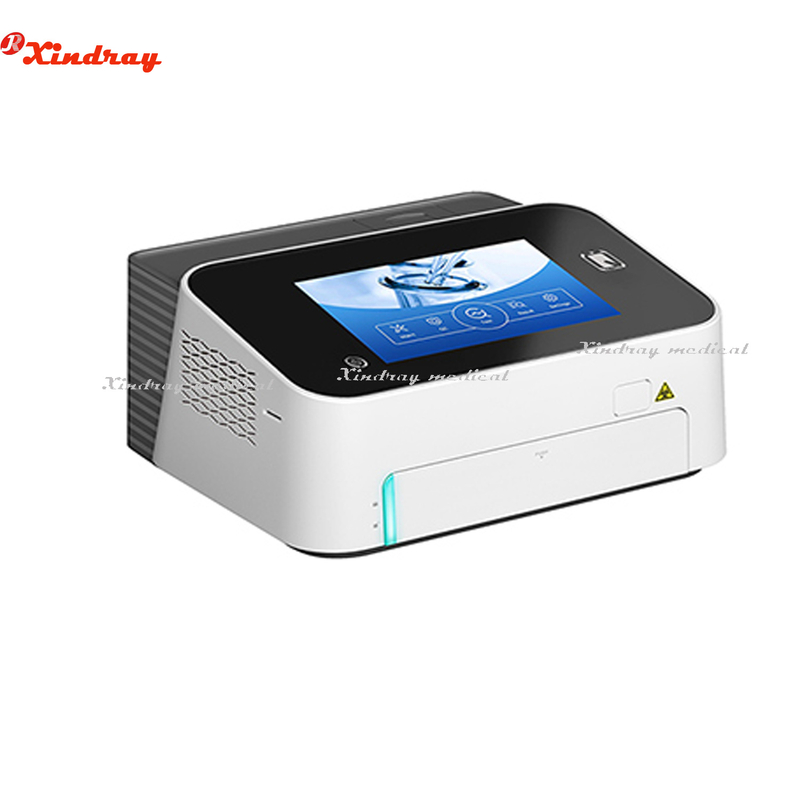

In conjunction with dedicated test kits of Immunofluorescence, the instrument automates the detection and quantification of markers for cardiovascular disease, renal diseases, inflammation, fertility, diabetes mellitus, bone metabolism, tumor and thyroid in a biological sample.
Specifications:
| Product Name | Immunofluorescence Quantitative Analyzer |
| Type | Premium POCT Solution |
| Display | 10.1-inch LCD touch screen, Resolution: 1280 × 800 |
| Application | Hospital, Clinic, Laboratory |
| System | Android |
| Communications | USB port for software update and file copy COM port for PC Ethernet port for LIS |
| Data Storage | Over 100,000 data |
| Sampling | Sample Type:serum,plasma,whole blood,capillary blood,urine Sample Volume:10~200μL depending on the assay |
| Printer | Built-in thermal printer, USB printer |
| Dimension | 409 mm*344 mm*193 mm (W*D*H) |
| Weight | 9 KG |
| Operating Environment | Indoor Use Only Temperature: 10℃~ 35℃ Relative humidity: ≤ 70% Air pressure:70.0kPa~106.0kPa No frost,condensation,seepage,rain,sun exposure,etc. |
| Storage Environment | Temperature: -40℃ ~ +55 ℃ Relative humidity: ≤ 93% Air pressure: 50.0kPa ~ 106.0kPa |
| Power Supply | AC 100V ~ 240V, 50/60Hz, 120VA |
| IP Rating | IPX0 |
| Pollution Degree Rating | 2 |
| Overvoltage Category | II |
