XRMD21010306
XINDRAY

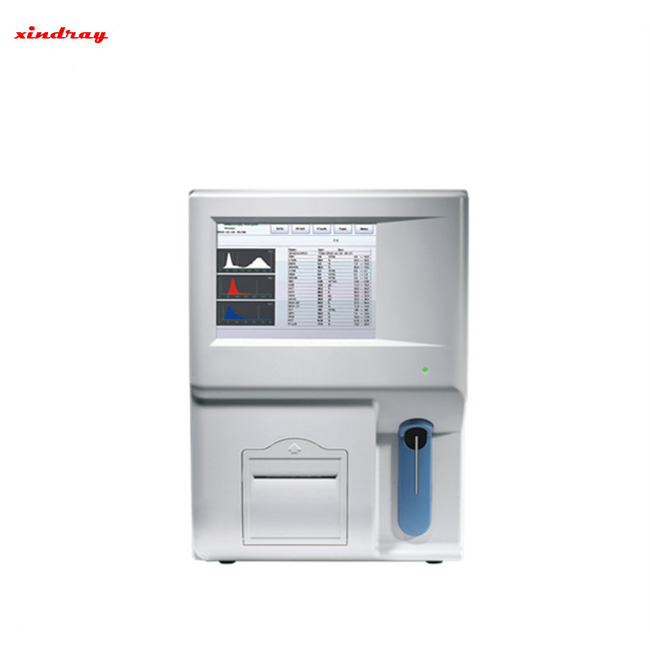

Medical Equipment Fully Auto Hematology Analyzer
Product features
it is a compact 3-diff hematology analyzer with 60 samples per hour, we deeply understand the thoughts of small or medium lab including limited budget, small space of lab, shortage of technician, etc. That is why we are dedicated to keep working on it to help our customers to solve their problems by providing reliable and high performance product with affordable price.
Specifications:
Test Principle: Impedance for cell counting and cyanide-free method for HGB
Test Flow: 1 click to finish test automatically, 10uL blood is needed
Clog Clear: High voltage and high pressure flush
Parameter: 3 part differentiation of WBC, 20 parameters + 3 histograms
Sample Mode: Venous, capillary and prediluted blood
Test Channel: Two channels
Throughput: 60 samples/hour
Language: English, Spanish, Portuguese, etc
QC Mode:3 level QC, L-J graph
Calibration Mode: Auto mode and manual mode
Reference Range Type: Newborn, children, male, female and general
Reagent: 2 reagents(Lyse and Diluent)
Memory: 100,000 sample results
Display: Large colour LCD with touch screen
Input/Output: Keyboard, mouse, RS232 serial port
Printer: Inner thermal printer, can be connected to external printer
Voltage: 100~240 AC, 50/60Hz
Dimension: 410mm*435mm*472mm
Net Weight: 21kg
Performance:
Parameters | Precision(CV) | Measurement range |
WBC | ≤2.0% (7.0-15.0*109)/L | (0-99.9*109)/L |
RBC | ≤1.9% (3.5-6.0*1012)/L | (0-99.9*1012)/L |
HGB | ≤1.9% (110.0-180.0)g/L | (0-300.0)g/L |
MCV | ≤0.4% (80.0-110.0)fL | |
PLT | ≤4.0% (100.0-500.0*109)/L | (0-999*109)/L |
