1. 6 Standard parameters: ECG, 2-TEMP, NIBP, SpO2, RESP, PR/HR
2. 12 inch high resolution color TFT LCD display
3. Real time S-T segment analysis, pace-maker detection
4. Indication of incorrect manipulation and malfunction analysis
5. Patient info input management function
6. Multi-lead ECG waveforms display in phase
7. Large volume of tabular and graphic trends information storage and easy to recall
8. Capture dynamic waveforms
9. Up to 2 hours working capacity of built-in rechargeable lithium battery
10. Unique accessory management cabinet
11. Networking capacity
12. Option: IBP, 24BP, ETC02, Built-in recorder, cart, wall shelf

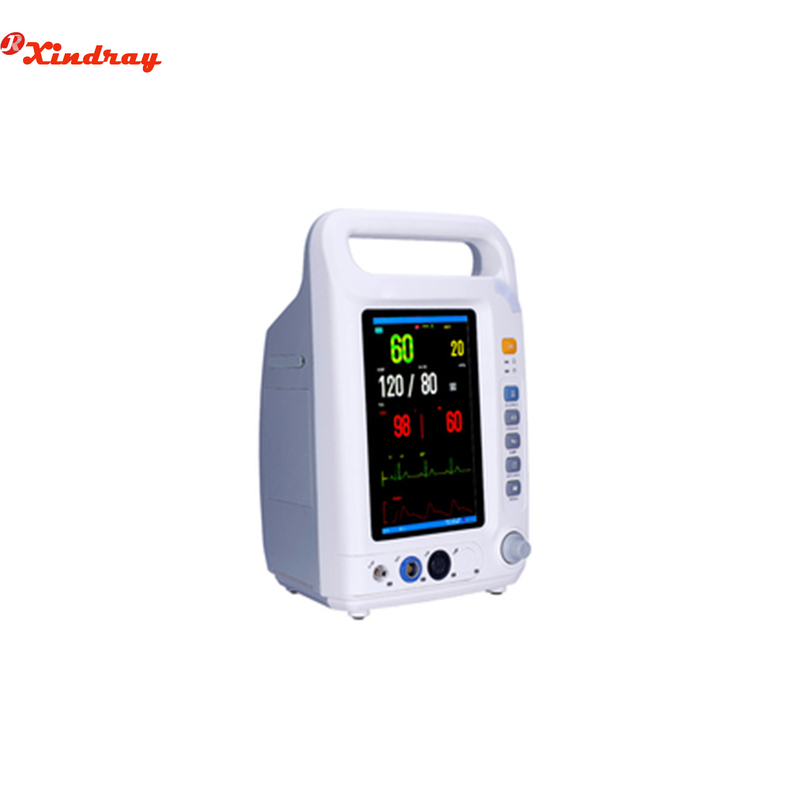

XRME220208340
XINDRAY
Feature:
1. 8inch high resolution color TFT LCD display
2. Full touch screen selectable, more convenient for operation
3. Real time S-T segment analysis, pace-maker detection
4. 3-level audio/visual alarming
5. Patient info input management function
6. Efficient resistance to interference of defibrillator and HF knife.
7. Lasting working capacity with built-in rechargeable lithium battery
8. 400 groups of NIBP list, 6000 seconds ECG waveform recall, 60 alarm evens records recall, 7-day trend chart in storage
9. Flexible operate ETCO2 and dual IBP functions
10. Wire/wireless central monitoring system applicable to ICU/CCU/OR
11. Support solution: wall mounting, mobile trolley
Specification:
Quality Standards
CE.ISO13485,SO9001
Design patent certification
Application Range
Adult/Pediatric/Neonatal/Medicine/Surgery/
Operating Room/ICU/CCU
Display
7’real color TFT screen
Environment
Operating environment:
Temperature: 0-40℃
Humidity: 15%-80%
Pressure: 86.0 kpa-106。0kpa
Transport and Storage environment
Temperature: -20-55℃
Humidity: 10%-90%
Pressure: 86.0 kpa-106。Okpa
Power Requirements
AC:100~240V,50Hz/60Hz
DC: Built-in rechargeable battery
Battery: 11.1V 24wh Li-ion battery
2h operating after full charge
5min operating after low battery alarm
Dimension and Weight
Equipment
175mm x 140mm x300 mm; 3.3 kg
Package:
360mm×250mmx300mm; 4.5kg
ST segment
ST Segment Range: -2.0mv-+2.0mv
Accuracy 0.02mV
Spo2
Measurement range: 0-100%
Resolution 1%
Accuracy: 70%-100% 土2%
40%~69%±3%
Pulse Rate
Measure/alarm range: 20- 300bpm
Resolution 1bpm
Accuracy ±3bpm
Displayed Parameters
Time: Battery-backed quartz crystal clock
ECG: ECG Waveform Scale, displayed lead
Heart Rate: Derived from ECG or Spo2
NIBP: Pressure (systolic, mean and diastolic
Pulse Oximeter: Pulse Rate, Spo2 waveform, and
Oxygen saturation
Respiration Rate: Respiration rate derived from ECG
Trends: HR, RR, NIBP, TEMP and Spo2
Temperatures: one channels
ECG
5 Leads: RA. LA. LL RL. V
Lead mode：I，Ⅱ，Ⅲ，AVR，AVL，AVF，V
Gain: x 1.25mm/mv. 2.5mm/mv
5.0mm/mv 10mm/mv
20mm/mv (error<=5%)
Sweep speed: 6.25mm/s, 12. 5mm/s, 25mm/s
50mm/s (error s 土10%)
Bandwidth: Surgery 1-25 HZ
Monitor 0.5-40 Hz
Diagnostic 0.05- 130 HZ
Sensitivity: >200 uV P-P
CMRR:>=112db
Differential Input Impedance: >5M
ohm Electrode Offset Potential: 土300mv
Polarization Voltage：≥±500mV
nput Impedance：≥5M
Calibration Voltage: 1mv土5%
RESP
Method: impedance between RA-LL
Resp Impedance range: 0.3-3Ω
Base Impedance range: 200Ω-4000Ω
Bandwidth: 0.3-2.5HZ
Gain:×0.25.×0.5.×1.×2.×4
Resp rate
Measurement Range
Adult
0-120BRPM
Neonatal/Pediatric 0- 150BRPM
Resolution 1BRPM
Accuracy: 7-150brpm(土2BRPM)
0-6brpm(unspecified)
Apnea Alarm: 10-40s
NIBP
method Oscillometry
Measure mode Manual Auto STAT
Measure interval in auto mode
1-5/10/15/30/60/90/120/180/240/480min
Measure period in STAT mode: 5min
Pulse rate range. 40-240bpr
Measure &alarm range: Adult
SYS 40-280mmhg
DIA 10-220mmhg
MEAN 20-240mmhg
Pediatric
SYS 40-220mmHg
DIA 10-160mnHg
MEAN 20-170mmhg
Neonatal
SYS 40~135mmH
DIA 10-100mmhg
MEAN 20-110mmhg
Static pressure measurement
Range:
0-300mmhg
Accuracy ±3mmH
Resolution: 1mmhg Accuracy
Max. Mean Error:±5mmHg
Ma. Standard Deviation: 8mmhg
Overpressure protection
Adult 300mmhg
Pediatric 240mmhg
Neonatal 150mmhg
TEMP(optional)
Channel 1
Measure&alarm range: 0-50℃
Resolution 0.1℃
Accuracy(no sensor): 土0.1℃(0-50℃)
Standard accessories
NIAP cult tube
ECG cable electrodes
Spo2 sensor
Lithium-ion battery
Power cable
Operators manual
Optional accessories
TEMP probe (skin)
Trolley bracket
Hanging bracket
Monitor recorder
Vehicle-mounted power supply
