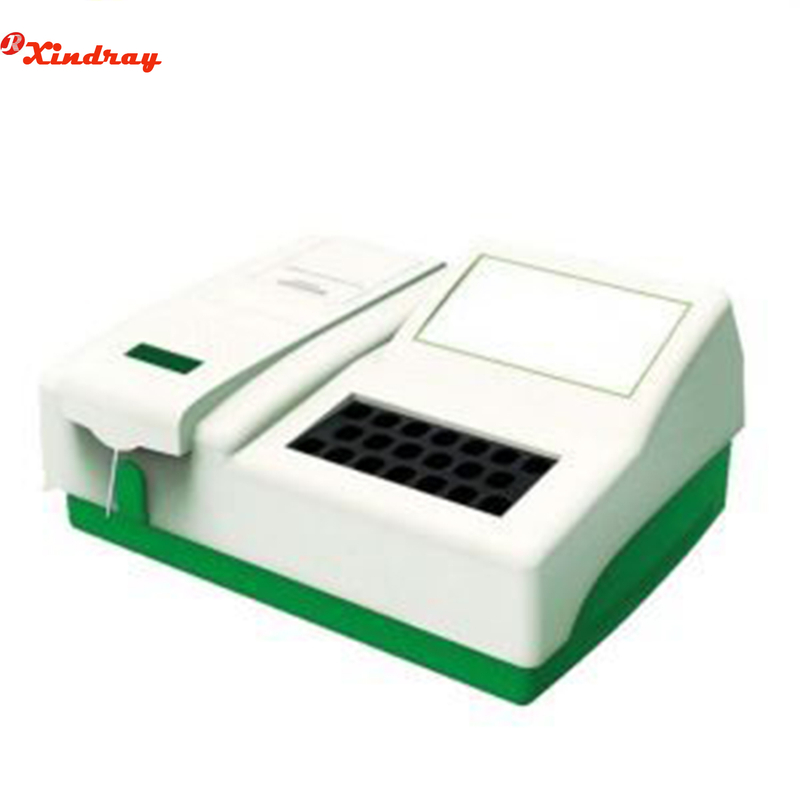

Semi Automated Chemistry Analyzer

Feature:

1. Easy operational by one button, can be connected to the computer.
2.End point, two point (fixed time), kinetic, multistandard, bichromatic, etc.
3.With 20 incubating positions.
4.Large memory to store 200 test programs and 1000 testing results.
5.Excellent QC function, QC chart can be stored, displayed and printed.
6.3 level tempetature: 25℃, 30℃, 37℃ can be selected in flow cell and incubating.
7.Real-time graph can be displayed and printed.

Availability:
  • XRME210302111

  • XINDRAY

Semi Automated Chemistry Analyzer

1

Feature:


1. Easy operational by one button, can be connected to the computer.
2. End point, two point (fixed time), kinetic, multistandard, bichromatic, etc.
3. With 20 incubating positions.
4. Large memory to store 200 test programs and 1000 testing results.
5. Excellent QC function, QC chart can be stored, displayed and printed.
6. 3 level tempetature: 25℃, 30℃, 37℃ can be selected in flow cell and incubating.
7. Real-time graph can be displayed and printed.


Technical Specification:


Reading Cuvette

Quartz flow through cell

Measuring Volume

450μl - 800μl

Incubator

None

Photometric System

Light Source:6V/10W halogen lamp; Standby function

Wavelength:340/405/492/510/546/578/620nm, 2 more filters available on request.

Wavelength Accuracy: ±2nm

Thermostatic Control

Temperature:25°C, 30°C, 37°C

Precision: ±0.1°C

Measuring System

Method: End point, Fixed time, Multi standard, Biochromatic and Immunoturbidimetry, etc.
Measuring Range: 0~3.000 OD

Photometric Linearity: ±2%(0~3.000 O.D)

Photometric Accuracy: ±1%(0~3.000 O.D)

Carry-over: ≦1%

Drift

<0.005 O.D/HR

Test Menu

TBILI      r-GT/GGT        CHO         Ca       APOB-1/B         CHE

D.BILI     ALP/AKP         TG          CL       APOB             CREA

TP         UREA            CK          P        CK-MB            Mg

ALB        LDH             C           ASO      AFU              Lactic Acid

ALT/GPT     UA              α-HBDH     CO2      FMN              LP(a)

AST/GOT     GLU             AMY         LDL-C    HDL-C            LA

TBA         ADA             HS-CRP      PA       Fe               Cu

Zn          C3              C4          LGG

LGM         LGA             and drug, toxicity, etc

Quality Control

Excellent Q.C. function, Q.C. chart may be displayed and printed

Storage

Over 180 programs, 3000 test results

Printer

Built-in thermal printer

Software

For computer communication on request
