1. SPO2(Optional)
2. Voice prompt
3. Standard built-in Recorder, Defibrillation discharge trigger recording
4. The ECG waveform via paddle electrode
5. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
6. Standard Li-ion battery
XRME220209440
XINDRAY
Feature:
1. SPO2(Optional)
2. Voice prompt
3. Standard built-in Recorder, Defibrillation discharge trigger recording
4. The ECG waveform via paddle electrode
5. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
6. Standard Li-ion battery
Specification:
DEFIBRILLATOR
(1)Defibillator type:Manual,synchronized,Asynchronized
(2) Energy accuracy:<+1%
(3) Energy selection:0.3.5.7.10.20.30.50.100.200.300.360joules(nominal at a resistance of 50)
(4) Charging time:Maximum 10 seconds to 360 Joules
(5) Standard adult/pediatric paddles:reusable external adult paddles (pediatric paddles integrated)
Power requirements
(a) AC Power supply :100v-240v,50hz/60hz
(b) Vehicle voltage(option):dc 12v
Internal battery backup
(1) battery type:rechargeable lead-acid battery(12v 2.0ah *2)
(2)Charing time:time-minimum of 4 hours for full charging
(3)battery charging:during ac power supply operation of the device
(4)charing/low battery indication:red led
(5)battery capacity:100% of the battery will provide 120-min monitoring;and 35discharges at 360 joules
Display
Lcd dimensions 7-inch
Type:high resolution true-color graphic
Resolution:480*234

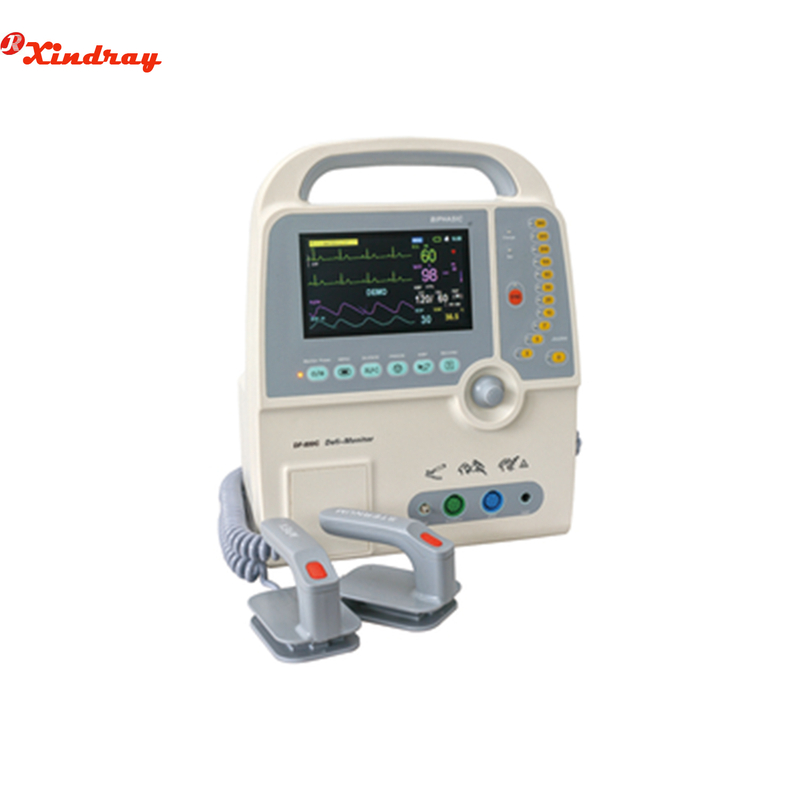

HD-8000C Defi-monitor
HD-9000C Defi-Monitor
Physical characteristics
Main unit: portable
Dimensions:L320*W205*H410
Weight:9.8kg
ECG
ECG lead: I.II. III AVR AVL AVF V1-V6
S-T segment analysis: -2.0-2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000VAC/50HZ voltage in
isolation and work against electrosurgical knife and
defibrillation
Respiration
Measurement method.:Thoracic impedance
NIBP
Working mode: Manual/Automatic/stat(5 minutes)
Method Automatic oscillation
Cuff type standard Adult, optional Pediatric/Neonatal
Temperature
Measurement range 20-45℃
Resolution 0.1℃
Pulse Oximetry(SPO2)
Display: spo2 value, pulse histogram, waveform, Pulse
Range: 0-99%for adult, pediatric and neonatal patients
Probe: standard adult finger clip
optional pediatric Y-type clip and neonatal wrap
Pulse range
Pulse range: 0-255bpm
Standard parameter &configuration
ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
Optional parameter
Recorder Liion battery (11. 1V 4AH X2)
