XRMD210105011
XINDRAY

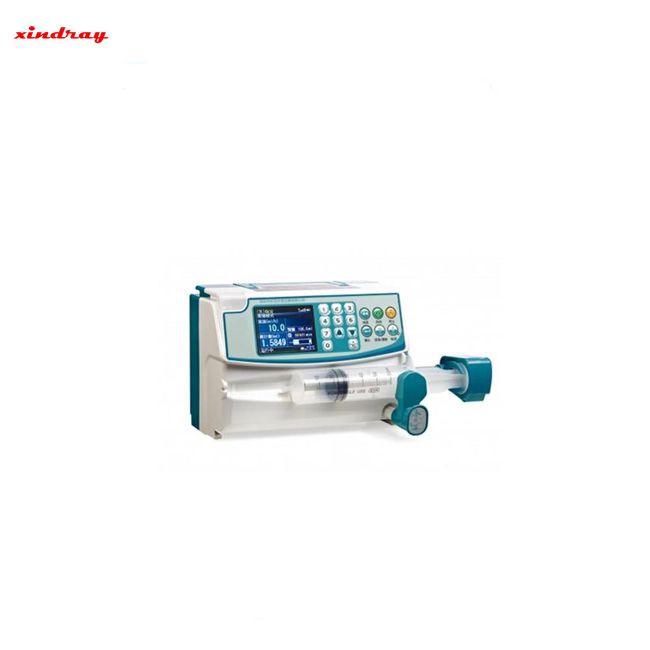

High Quality Medical Syringe Pump
Product features
Large & colorful LCD display
History records
RS232 interface
Adjustable buzzer volume
Anti-bolus function
TIVA mode
90°rotatable pole clamp convenient for horizontal bar & vertical IV pole
Unique syringe intelligent recognition technology
Dynamically display the pressure
User self-define syringe brands
Stackable function
Technical Specification:
Infusion mode | rate mode, time mode, Body weight mode, dose mode, Intermittent mode, TIVA, Program mode, TPN mode, Switch mode, Drug library |
Applicable syringes | Various brands of sterile syringes: 2ml, 5ml, 10ml, 20ml, 30ml, 50ml/60ml, including BD, B.Braun, Terumo, Nipro etc. |
Syringe accuracy | ±2%(after syringe correct calibration) |
Infusion rate | 2ml syringe: 0.1-150ml/h 5ml syringe: 0.1-150ml/h 10ml syringe: 0.1-300ml/h increment: 0.01ml/h 20ml syringe: 0.1-600ml/h 30ml syringe: 0.1-900ml/h 50ml syringe: 0.1-1800ml/h |
Volume to be infused | 0~9999.9(ml) increment: 0.01,l/h |
Volume Infused | 0~9999.9(ml) |
KVO rate | 0~5ml/h adjustable; default value: 0.1ml/h |
Bolus | Manual Bolus/Automatic Bolus: 0.1~1800ml/h (depend on syringe size) |
Alarms | Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc |
Functions | Standby function: 1min-24 hours adjustable 13 occlusion levels History records more than 2000 Can change the flow rate and VTBI without stopping the infusion Compatible with hospital HIS system WIFI connect to central monitoring system |
Battery | Li_Polymer 7.4V 1900mAh, more than 6 hours at 5ml/h |
Operating conditions | Temperature: 5℃~40℃ Relative humidity: 10~95% Atmosphere pressure: 86~106kPa |
Transport conditions | Temperature: -20~60℃ Relative humidity: 10~95% Atmosphere pressure: 50~106kPa |
Storage conditions | Temperature: -20~45℃ Relative humidity: 10~95% Atmosphere pressure: 50~106kPa |
