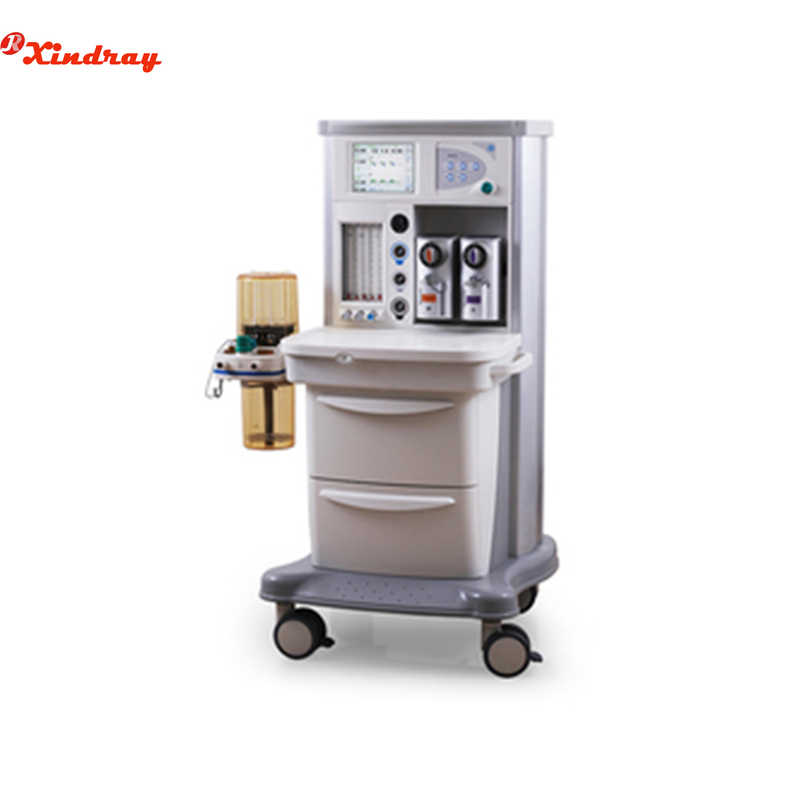

Halothane Anesthesia Vaporizer

Feature:

Integrated breathing circuit with Aplvalve, excellent tightness.
Replacing drive bellow is NOT required when operating pediatric anesthesia
Applied with 2 high-precision vaporizers. (Selectatec)
8. 4 inch screen with no dead space
Real-time detection for loops, Paw, BPM, VT and compliance
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring
ACGO available to connect with T/Bain circuit for open operation
Yoke system with up to 3 back up cylinders(A type with 11L size

Availability:



Inquire Add to Basket

Model:
XRME220203361
Brand:
XINDRAY

Product Description

Halothane Anesthesia Vaporizer

Feature:

Integrated breathing circuit with Aplvalve, excellent tightness.
Replacing drive bellow is NOT required when operating pediatric anesthesia
Applied with 2 high-precision vaporizers. (Selectatec)
8. 4 inch screen with no dead space
Real-time detection for loops, Paw, BPM, VT and compliance
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring
ACGO available to connect with T/Bain circuit for open operation

Yoke system with up to 3 back up cylinders(A type with 11L size

Specification:

Technical Specifications
dimensions	7085140cm
weight	65kg
casters	Front wheels with lock
Screen	lcd
display	8.4inch
Display graphics	Wavefor,ms of p-t,f-t,loops of p-v,v-f,f-p
monitoring	Vt,mv,bpm,paw,lung compliance inspiratory platform,fio2
Working specifications
power	Ac 220v 土10%,50hz土 2%
Output pressure	0.4土0.1mpa
current	500ma max
Ventilator specifications
Modes of ventilation
vcv	Volume controlled ventilation
slmv	Synchronized intermittent mandatory ventilation
manual	manual
Slppv(a/c)	Synchronized intermittent positive pressure ventilation
Stand-by	Stand-by
Ventilator parameter
Working type	Electronically controlled,pneumatic driven
Tidal volume range	20-1500ml
Pressure range	5-80 mbar
Rispriation rate range	1-99bpm(1-40bpm under simv)
I:e range	4:1-1:8
Ptrigger range	-20-20cmh2o
Minute volume range	>18l/min
Sigh range	0-5/100
System standard
Hypoxic guard system	N2O cut-off valve. 02 concentration >25%
Safety valve	<12.5kpa
Fresh gas compensation	25-75l/min
Volume of co2 absorber	2 L
Fiow meter	5tubes, Cascade 0.1-15lmin O2 0, 1-15L/min N2o 0.1-15l/min air
vaporizer	2Selectetac,maximum 2 mounts(Isoflurane/Enflurane/Sevoflurane/Halothane
Alarm limits
Audio/visual	No tidal volume MV. Paw. Fio2 limitation O2 Air failure, AC power failure, Battery low
Pipeline supply
Gas configuration	O2 N2o air
Pipeline input range	280-600kPa
Battery power
Battery type	Lead-acid 12v 4ah
Run time	Typical 30 mins+ up to 2 hrs
Pre-setting functions
language	english
calibration	automatic
applications
Patient range	Audlt/peadiatric
peep
type	INTEGRATED,ELECTRONIC CONTROL
range	OFF,3-25CMh2o
optional
Agss Suction unit Auxiliary o2 flowmeter
