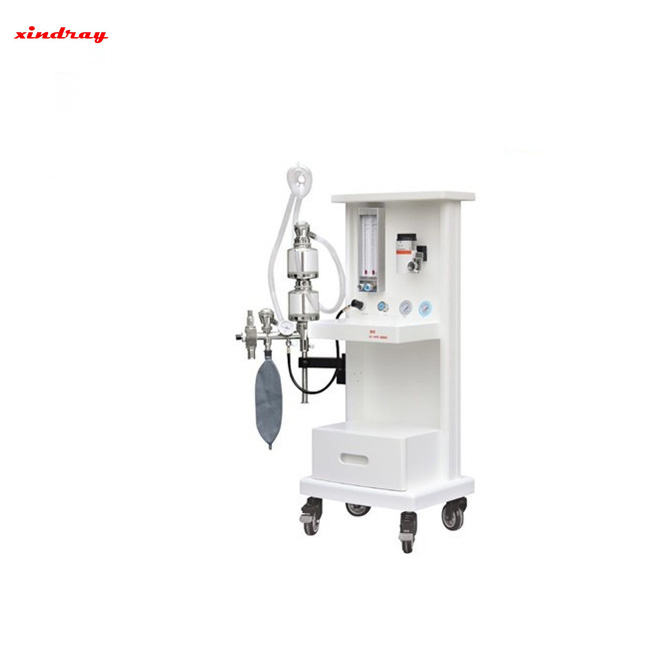

Portable Anaesthesia Machine With Or Without Ventilator

Scope of application

Adult, Child

Gas source

O2, N2O: 0.27~0.55MPa

Flow meter

O2: 0.1~1.0L/min 1.1~10L/min

Flow rate of rapid oxygen supply

25~75L/min

Vaporizer

Can be chosen for application as required by the customer

There will be sound alarm when the oxygen pressure＜0.2Mpa

Respiratory bellows

bellows for adults,

bellows for children

tidal volume range:

0~1500 ml

bellows for adults, bellows for children

tidal volume range:0~1500 ml

Ventilator

Without

With

Display mode

High-definition 4.8” LCD screen display

Ventilation  mode

IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume,  respiratory rate)

Ventilation parameters

Tidal volume

50~1500ml

Rate

4~80bpm

I:E

2:1~1:4

Pressure range

1.0~6.0kPa

Parameters for ventilation monitoring

tidal volume, ventilation volume, IPPV rate,   I/E, peak pressure of airway, inspiratory trigger pressure,   pressure - time waveform

Security Alarm System

Airway pressure alarm

upper limit setting range

1.0~6.0 kPa

low limit setting range

0.4~2.0 kPa

TV alarm

upper limit setting range

0.5~2.0L

low limit setting range

0.02~1.0L

Sustained high-pressure alarm

it will give alarm when stress have consistently  been higher than 2.5 kPa

Suffocation alarm

it will give sound and light alarm if there is no tidal volume input in 15s

Power alarm

Power

AC 220V±10% 50Hz±1Hz
