1. SPO2(Optional)
2. Voice prompt
3. Standard built-in Recorder, Defibrillation discharge trigger recording
4. The ECG waveform via paddle electrode
5. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
6. Standard Li-ion battery
XRME220209439
XINDRAY
Feature:
1. SPO2(Optional)
2. Voice prompt
3. Standard built-in Recorder, Defibrillation discharge trigger recording
4. The ECG waveform via paddle electrode
5. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
6. Standard Li-ion battery
Specification:
(1) Defibrillator type: Manual, synchronized, Asynchronized
(2) Energy accuracy:<+1%
(3) Energy selection:0.3.5.7.10.20.30.50.100.200.300.360joules(nominal at a resistance of 50)
(4) Charging time: Maximum 10 seconds to 360 Joules
(5) Standard adult/pediatric paddles: reusable external adult paddles (pediatric paddles integrated)
(a) AC Power supply :100v-240v,50hz/60hz
(b) Vehicle voltage(option):dc 12v
(1) Battery type: rechargeable lead-acid battery(12v 2.0ah *2)
(2) Charging time: time-minimum of 4 hours for full charging
(3) Battery charging: during ac power supply operation of the device
(4) Charging/low battery indication: red led
(5) Battery capacity: 100% of the battery will provide 120-min monitoring; and 35 discharges at 360 joules
LCD dimensions 7-inch
Type: high resolution true-color graphic
Resolution:480*234
ECG lead: I.II. III AVR AVL AVF V1-V6
S-T segment analysis: -2.0-2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000VAC/50HZ voltage in isolation and work against electrosurgical knife and defibrillation
Measurement method: Thoracic impedance
Working mode: Manual/Automatic/stat(5 minutes)
Method: Automatic oscillation
Cuff type: standard Adult, optional Pediatric/Neonatal
Measurement range 20-45℃
Resolution 0.1℃
Display: spo2 value, pulse histogram, waveform, Pulse
Range: 0-99%for adult, pediatric and neonatal patients
Probe: standard adult finger clip
optional pediatric Y-type clip and neonatal wrap
Pulse range: 0-255bpm
ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
Recorder Li-ion battery (11. 1V 4AH X2)

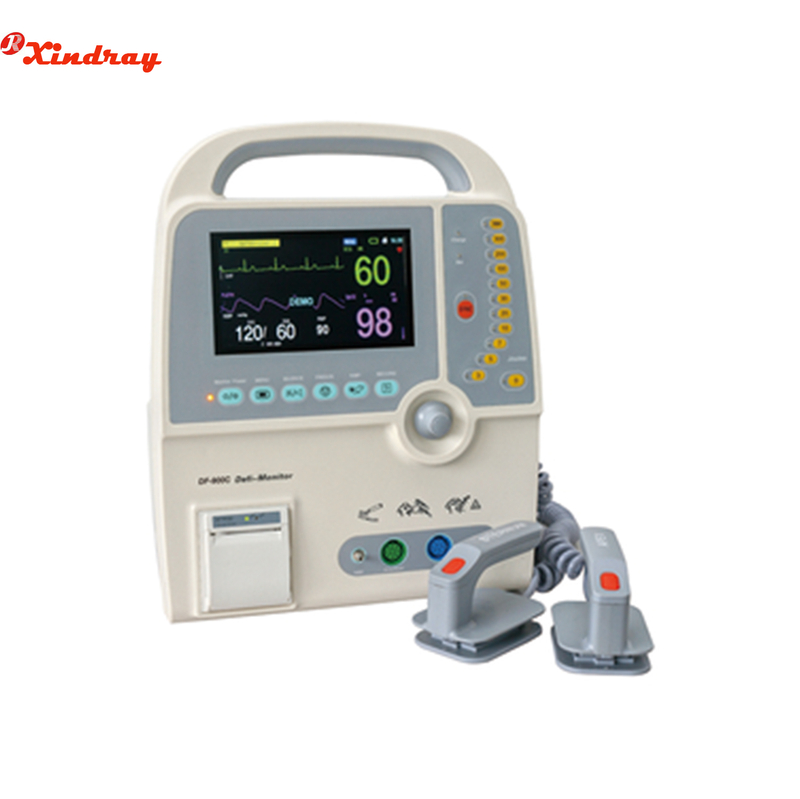

HD-8000C Defi-monitor
HD-9000C Defi-Monitor
Physical characteristics
Main unit: portable
Dimensions:L320*W205*H410
Weight:9.8kg
Feature:
1. SPO2(Optional)
2. Voice prompt
3. Standard built-in Recorder, Defibrillation discharge trigger recording
4. The ECG waveform via paddle electrode
5. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
6. Standard Li-ion battery
Specification:
(1) Defibrillator type: Manual, synchronized, Asynchronized
(2) Energy accuracy:<+1%
(3) Energy selection:0.3.5.7.10.20.30.50.100.200.300.360joules(nominal at a resistance of 50)
(4) Charging time: Maximum 10 seconds to 360 Joules
(5) Standard adult/pediatric paddles: reusable external adult paddles (pediatric paddles integrated)
(a) AC Power supply :100v-240v,50hz/60hz
(b) Vehicle voltage(option):dc 12v
(1) Battery type: rechargeable lead-acid battery(12v 2.0ah *2)
(2) Charging time: time-minimum of 4 hours for full charging
(3) Battery charging: during ac power supply operation of the device
(4) Charging/low battery indication: red led
(5) Battery capacity: 100% of the battery will provide 120-min monitoring; and 35 discharges at 360 joules
LCD dimensions 7-inch
Type: high resolution true-color graphic
Resolution:480*234
ECG lead: I.II. III AVR AVL AVF V1-V6
S-T segment analysis: -2.0-2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000VAC/50HZ voltage in isolation and work against electrosurgical knife and defibrillation
Measurement method: Thoracic impedance
Working mode: Manual/Automatic/stat(5 minutes)
Method: Automatic oscillation
Cuff type: standard Adult, optional Pediatric/Neonatal
Measurement range 20-45℃
Resolution 0.1℃
Display: spo2 value, pulse histogram, waveform, Pulse
Range: 0-99%for adult, pediatric and neonatal patients
Probe: standard adult finger clip
optional pediatric Y-type clip and neonatal wrap
Pulse range: 0-255bpm
ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
Recorder Li-ion battery (11. 1V 4AH X2)
HD-8000C Defi-monitor
HD-9000C Defi-Monitor
Physical characteristics
Main unit: portable
Dimensions:L320*W205*H410
Weight:9.8kg
