XRMD21020407
XINDRAY

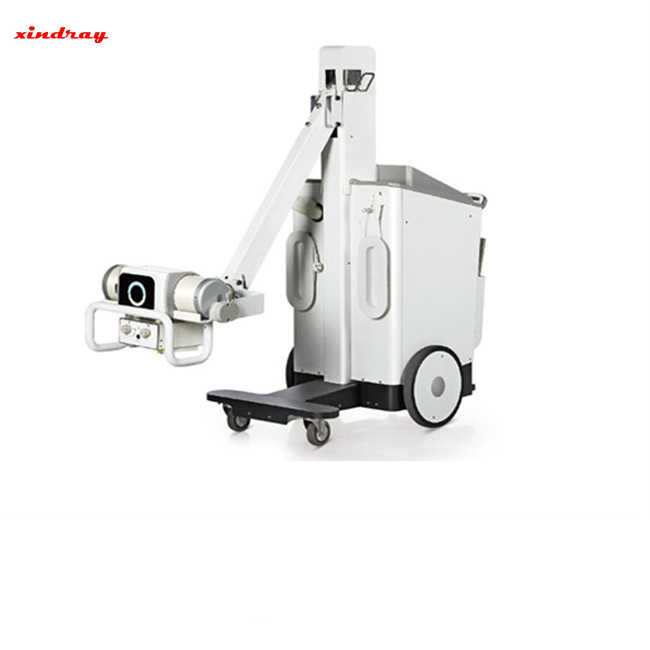

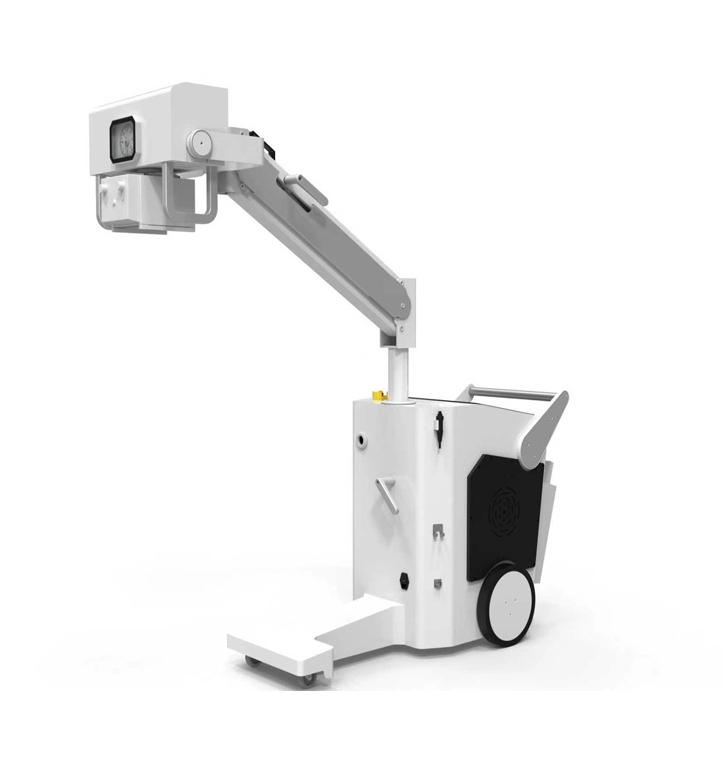

Mobile Cooper Mobile Digital X Ray System
Product features
MobileCooper is an economic and practical mobile digital x-ray system, can be widely used in radiology, orthopedic, medical examination department, emergency room, intensive care unit, operating room and neonatal pediatric, it fully meet the demand of hospital digital radiography.
Main Components | Technical Specifications | |
Flat Panel Detector | X-ray Sensitive Area | 14*17inch |
Generator | Standard Power | 40KW |
kVp Range | 40~150kVp | |
mAs Range | 0.1~250mAs | |
Anode Heat Content | 150kHU | |
X-ray Tube | Weight | 220kg |
Height | 149cm | |
Width | 65cm | |
Tube Tilting Angle | ±90° | |
Tube Vertical Rotation Angle | -30°~+90° | |
Arm's Folding Range | ±60° | |
SID | 507~2000mm |
High-index Image Chain
40KW High power & high voltage generator and large heat capacity of x ray tube provide strong foundation for output
Wireless flat panel detector is free from cable and makes position more flexible. High pixel provides solid foundation for high quality images.
Light Weight and Flexibility
Compact structure, in narrow space, MobileCooper can achieve full circle rotation, easy movement.
New folding stand design, when radiographer drives the equipment, the line of sight is not covered, can look straight ahead of the road, avoiding collision.
New Power Design
Dual power supply, exposure under either wall current or lithium battery.
It is equipped with dynamic lithium battery, which has the advantages of green environment, light weight, small volume, greatly shortened charging time, and increase longevity.
