XRMD210103012
XINDRAY

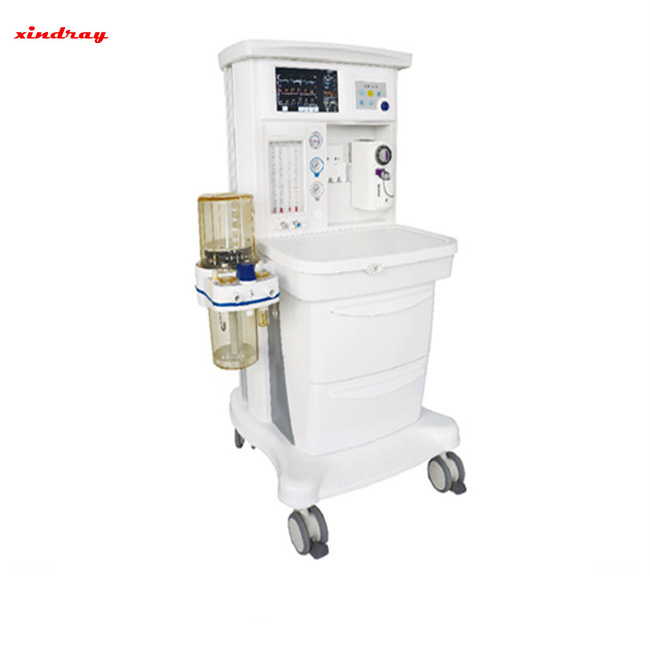

Single Vaporizer Anesthesia Machine
Product features
·Integrated breathing circuit with APL valve, excellent tightness.
·Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
·10.1 inch screen with no dead space.
·Applied with 1 high-precision vaporizers. (Selectatec).
·Real-time detection for loops, Paw, BPM, VT and compliance.
·Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
·ACGO available to connect with T/Bain circuit for open operation(Optional).
·Yoke system with up to 3 back up cylinders (A type with 11L size)(Optional).
Technical Specification:
Modes of Ventilation | VCV: Volume Controlled Ventilation A/C: Assist/control Ventilation SIMV: Synchronized Intermittent Mandatory Ventilation Manual: Manual PCV: Pressure Control Ventilation STAND-BY: STAND-BY |
Ventilator parameter | Working type: Electronic control, pneumatic driven Tidal Volume range: 20-1500ml Pressure range: 5-60cmH2O Respiration Rate Range: 1-100bpm (1-40bpm under SIMV) I: E Range: 4:1-1:8 Trigger Range: -20-20cmH2O(based on PEEP) Minute volume range: >18L/Min SIGH range: 0-5/100 |
System standard | Hypoxic guard system: N2O cut-off valve, O2 concentration >25% Safety valve: <12.5kPa Fresh gas compensation: 25-75L/Min Flow meter: 4 tubes, cascade 0-15L/min O2, 0.1-15L/min N2O, 0.1-15L/min air(Optional) Volume of CO2 absorber: 2L Vaporizer: 1/2(Optional) Selectable, maximum 2 mounts(Isoflurane/Enflurane/Sevoflurane/Halothane) |
Monitoring | Display graphics: Waveforms of P-T, F-T, V-T, loops of P-V, V-F, F-P Types: VT, MV, BPM, Paw, Lung compliance, Inspiratory Platform, FiO2 |
Alarm Limits | Audio/Visual: No tidal volume, MV, Paw, FiO2 limitation O2, Air failure, AC power failure, Battery low |
PEEP | Type: Integrated, Electronic control Range: Air failure, AC power failure, Battery lo |
Optional | 1.AGSS 2.Suction Unit 3.Touch screen |
Single Vaporizer Anesthesia Machine
Product features
·Integrated breathing circuit with APL valve, excellent tightness.
·Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
·10.1 inch screen with no dead space.
·Applied with 1 high-precision vaporizers. (Selectatec).
·Real-time detection for loops, Paw, BPM, VT and compliance.
·Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
·ACGO available to connect with T/Bain circuit for open operation(Optional).
·Yoke system with up to 3 back up cylinders (A type with 11L size)(Optional).
Technical Specification:
Modes of Ventilation | VCV: Volume Controlled Ventilation A/C: Assist/control Ventilation SIMV: Synchronized Intermittent Mandatory Ventilation Manual: Manual PCV: Pressure Control Ventilation STAND-BY: STAND-BY |
Ventilator parameter | Working type: Electronic control, pneumatic driven Tidal Volume range: 20-1500ml Pressure range: 5-60cmH2O Respiration Rate Range: 1-100bpm (1-40bpm under SIMV) I: E Range: 4:1-1:8 Trigger Range: -20-20cmH2O(based on PEEP) Minute volume range: >18L/Min SIGH range: 0-5/100 |
System standard | Hypoxic guard system: N2O cut-off valve, O2 concentration >25% Safety valve: <12.5kPa Fresh gas compensation: 25-75L/Min Flow meter: 4 tubes, cascade 0-15L/min O2, 0.1-15L/min N2O, 0.1-15L/min air(Optional) Volume of CO2 absorber: 2L Vaporizer: 1/2(Optional) Selectable, maximum 2 mounts(Isoflurane/Enflurane/Sevoflurane/Halothane) |
Monitoring | Display graphics: Waveforms of P-T, F-T, V-T, loops of P-V, V-F, F-P Types: VT, MV, BPM, Paw, Lung compliance, Inspiratory Platform, FiO2 |
Alarm Limits | Audio/Visual: No tidal volume, MV, Paw, FiO2 limitation O2, Air failure, AC power failure, Battery low |
PEEP | Type: Integrated, Electronic control Range: Air failure, AC power failure, Battery lo |
Optional | 1.AGSS 2.Suction Unit 3.Touch screen |
