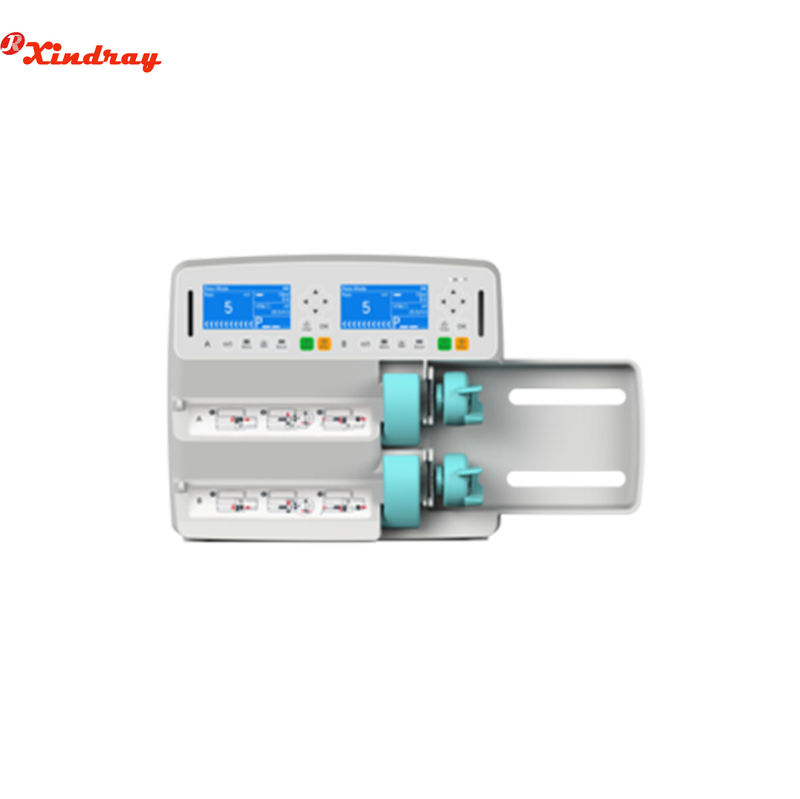

| Friendliness Dual Channel,Large LCD screen allows infusion status to be viewed easily User friendly keypad design Embedded handle allows for easy transportation Intuitive programming procedure with quick guidance on screen Safety High accuracy: ±2%, satisfying neonatal use Fast start, Anti-bolus, Drug name display, History record, Last therapy parameter memory IP34 dust and water protection Connectivity Nurse call/ RS 232/ DC input |
XRME220206363
XINDRAY
Feature:
Friendliness
Dual Channel,Large LCD screen allows infusion status to be viewed easily
User friendly keypad design
Embedded handle allows for easy transportation
Intuitive programming procedure with quick guidance on screen
Safety
High accuracy: ±2%, satisfying neonatal use
Fast start, Anti-bolus, Drug name display, History record, Last therapy parameter memory
IP34 dust and water protection
Connectivity
Nurse call/ RS 232/ DC input
Specification:
| Specifications and functions | |
| Dimension | 381 x 228 x 160mm |
| Syringe size | 5, 10, 20, 30, 50/60ml |
| Infusion mode | Rate mode, Time mode, Body weight mode, Intermittent administration mode |
| Flow rate range | 5ml syringe: (0.1~150)ml/h; 10ml syringe: (0.1~300)ml/h; 20ml syringe: (0.1~600)ml/h 30ml syringe: (0.1~900)ml/h; 50ml/60ml syringe: (0.1~1500)ml/h |
| Accumulated volume | 0.1〜9999 ml |
| VTBI | 0.1~999.9 ml, increment is 0.1 ml; 1000-9999ml, increment is 1ml |
| Increment | 0.1~999.9 ml/h, increment is 0.1 ml/h; 1000~1500 ml/h, increment is 1 ml/h |
| Accuracy | ≤ ±2% |
| KVO rate | 0.1-5.0 ml/h, adjustable, increment is 0.1ml/h |
| Bolus rate | 0.10-1500ml/h |
| Purge rate | 150-800ml/h |
| Occlusion | Low150±125mmHg(20kPa);Medium 300±125mmHg(40kPa); Medium high 525±125 mmHg (70kPa); High 900±180 mmHg (120 kPa) |
| Screen | 3.0'' LCD monochrome screen, 240 x 128 pixels |
| Tit-ration | Yes, increment is 0.1ml/h |
| Keypad lock | Yes |
| Pause | Yes |
| Automatic recognition of syringe size | Yes |
| Self-test system | Yes |
| Last therapy parameter memory | Yes |
| Drug library | 200 drugs |
| History record | 1500 events |
| Weight | <3.6kg (not including clamp) |
| Handle | Embedded handle |
| Mounting type | Standard: Vertical Pole |
| Alarm Volume | 1-8 levels select-able |
| Preset syringe brand | Include B-D Luer-Lok Tip,B.Braun OPS,Terumo SS; Local brand configuration supported |
| Language | 2, Chinese, English |
| Alarm | |
| VTBI done, VTBI near done, KVO finish, syringe empty, syringe near empty, syringe not installed, syringe disengaged, occlusion, system error, system abnormal, battery low, battery empty, reminder, AC power disconnection, standby time expired | |
| Safety Requirement | |
| AC power | 100-240V (50/60Hz, 0.8-0.28A) |
| DC power | 10-16V (4.0-2.5A) |
| Battery type | Lithium |
| Battery operation time | Standard: >5 hours@5ml/h for single channel, >3 hours@5ml/h for double channel; Optional: >10 hours@5ml/h for single channel, >6 hours@5ml/h for double channel |
| Charging time | Standard: <6 hours; Optional: <12hours |
| Classification | CF, Class I |
| IP Grade | IP 34 |
| Temperature | 5~40°C for operating, -20~60°C for storage |
| Humidity | 15~95% for operating, 10~95% for storage |
| Air pressure | 57~106kPa for operating, 50~106kPa for storage |
| Interface | |
| Data interface | Supported, RS232 |
| Nurse Call | Supported |
| DC input | Supported |
| Automatic relay function | Supported |
