XRMD21010707
XINDRAY

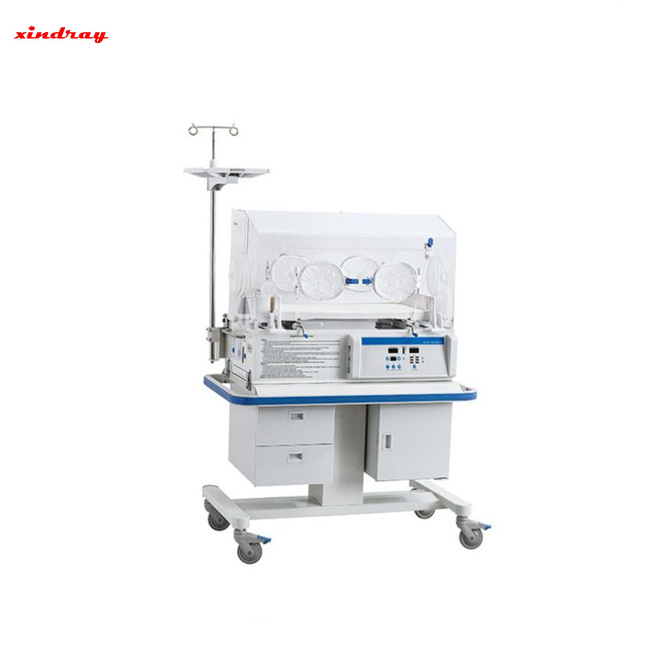

Premature Baby Incubator
Product features
Two control modes: Air mode and baby mode servo-controlled by micro-computer;
Set temperature, air temperature, baby temperature is displayed separately;
Natural air flow humidity;
Inclination of the bassinet is adjustable;
Multiple failure alarm indications;
RS-232 connector for date output;
The oxygen inlet;
Optional configuration: >37℃ temperature set function,
Baby scale, Vertical Height Adjustment cabinet, stand.
Low noise DC motor
Specification:
1.Power requirement: AC220V-230V/50Hz or AC 110-120V/50-60Hz,850VA
2.Control range of air temperature:25°C-37°C（override mode :37°C-39°C is optional）
Control range of baby temperature:34°C-37°C（override mode: 37°C-38°C is optional）
3.Accuracy of skin temperature sensor: ±0.2°C
4.Uniformity of temperature: ≦0.8°C (mattress is on the horizontal position)
5.Accuracy of weight display: ±1%（equipped weighing system）
Standard Configuration: Main body, Cabinet, Temperature Controller, Hood, I. V. pole, Tray.
Optional Configuration:
“>37℃” temperature override mode function, Vertical height adjustment stand (VHA stand), Weighing system, SpO2, Neonate Bilirubin Phototherapy Equipment, Disposable skin temperature sensor.
Environmental Temperature:
Environment temperature: 20°C~30°C（Set temperature should be 3°C higher than the environment temperature）
Ambient air velocity: <0.3m/s
Product Packaging:
Package: Main body and Cabinet are packed into two cartons
Dimension (Main body): 1085mm*640mm*910mm,63kgs;
(Cabinet): 1125mm*665mm*725mm, 68kgs
