Hospital Medical Equipment Urological Product Holmium Laser
Product Feature

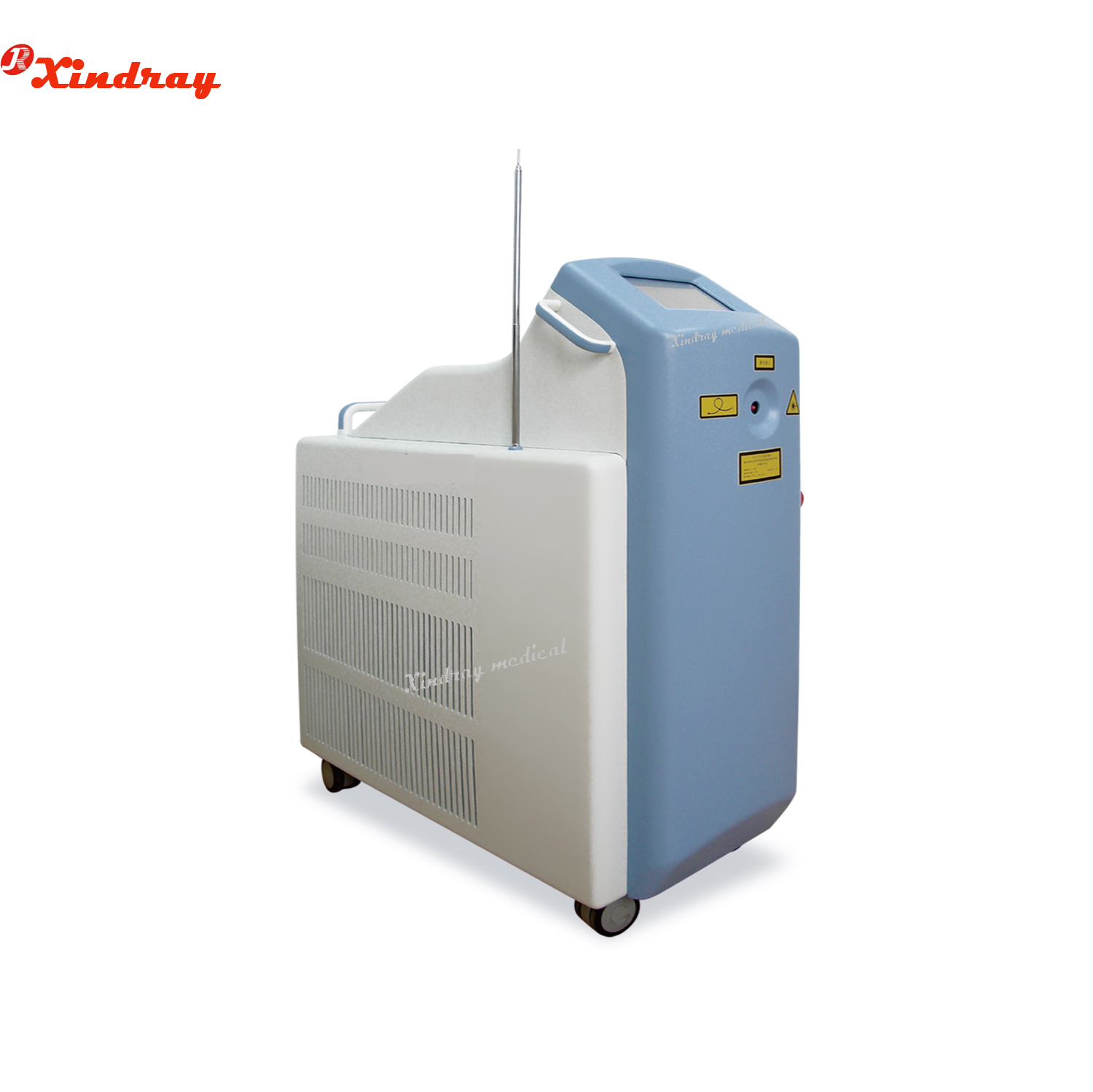

The holmium laser machine can produce a high-power density laser beam which wavelength is 2100nm, and through the optical fiber transmission system, it will transmit laser energy to target tissue for treatment.
Both the treatment machine and accessories are mainly used in the endoscopic treatment of urology system stones.
1. The wavelength of the holmium laser is 2.1 µ m, which is in the strong absorption range of water and can be well absorbed by biological tissue. It has a consistent and stable penetration depth (0.4mm) to the tissue, with a shallow penetration depth and is not affected by pigments, ensuring surgical accuracy in areas rich in important organs, nerves, and blood vessels, effectively and safely cutting, vaporizing, hemostasis, lithotripsy, and precise ablation.
2. The maximum duration of holmium laser is 0.8ms, which is smaller than the thermal conduction time of human body tissue (1ms). Therefore, it has little thermal damage to surrounding tissues, mild edema response, minimal patient pain, and short recovery time.
3. It can be equipped with a reusable fiber optic transmission system, which can penetrate the surface and deep tissues, and also conveniently perform intracavitary invasive surgery with the help of various hand tools and ready-made endoscopes, eliminating the need for surgery, reducing surgical costs, and alleviating patient pain.
4. Using a microcomputer to set and select parameters, digital display of working status, automatic power tracking display, and equipped with safety self check, self-locking, and emergency termination devices, the operation is convenient, and the performance is safe and reliable.
Specification:
| Main Parameters | |||
| Output Power | 2.5-40W | 2.5-80W | 2.5-100W |
| Pulse Energy | 0.5-4.0J | 0.5-4.5J | 0.5-4.5J |
| Repetition Rate | 5-20HZ | 5-40HZ | 5-40HZ |
| Work Mode | Engery feedback+closed loop control | ||
| Wave Length | 2100nm | ||
| Pulse Interval | 300us 600us | ||
| Optical Fiber | 550um,365um,200um,1000um,800um | ||
| Dimention | 89*45*90cm | 89*45*105cm | |
| Weignt | 170kg | `190kg | |
Our Service:
FAQ
You can place order to our company directly on online platform, or contact our salesperson for help, they will confirm order details like product configuration, shipping matters etc with you, and give you guidance for all process from purchase to arrival of your goods.
We accept payment by T/T Bank Transfer, online platform Trade Assurance Service, Western Union, Money Gram, L/C, Cash etc.
Delivery time is upon to your ordered product and quantity, generally our lead time is within 1 week, if have stock we can ship immediately.
We have long-term cooperated forwarder for worldwide shipping, we can deliver your products by express, air freight or sea freight , different shipping way the cost and time is different, we will give sincere advice according to your situation and you can decide, for many countries we even have door-to-door shipping service which include customs clearance and taxes.
We provide at least one year warranty for all our products (consumables exception).
If there is any fault for our products, we have well-trained and passionate after-sale engineers to help you, within warranty period we will repair and change the fault parts for free; after warranty we still provide lifetime technical support, if spare parts needed just charged at cost price.
We Xindray Medical Group is a professional medical company owned a lot of government certificates, and also online platform verified us as Premium Supplier there. Our company is aiming to serve more and more customers in the world, providing you good quality medical products, and more safe payment ways. All transactions between you and us is 100% guaranteed, you will enjoy our whole-hearted service all the time.
