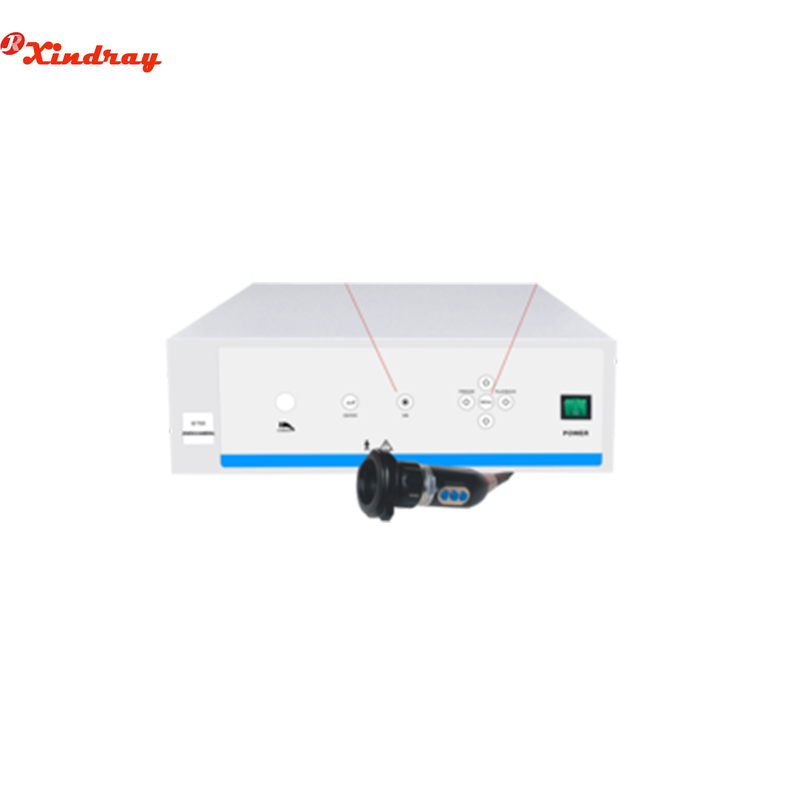

Medical Endoscope HD/CCD Camera

Feature:

1. The original import chip,Digital signal.
2. The resolution of endoscope camera is up to 1000 lines.
3. Automatic white balance,reduce the difficulty of operators.
4. Multi-output,BNC*1,VGA*1,SDI*4,HDMI*4.
5. Extinction speed is less than 0.2s.
6. Camera head waterproof: IPX8,to prevent water from entering the camera head during the surgery.
7. Special anti-jamming processing,effectively handle the disturbing voltage produced by high frequency electrotome,avoiding influencing surgery images.

Availability:
  • XRME220210445

  • XINDRAY

Medical Endoscope HD/CCD Camera

33

Feature:


1. The original import chip,Digital signal.
2. The resolution of endoscope camera is up to 1000 lines.
3. Automatic white balance,reduce the difficulty of operators.
4. Multi-output,BNC*1,VGA*1,SDI*4,HDMI*4.
5. Extinction speed is less than 0.2s.
6. Camera head waterproof: IPX8,to prevent water from entering the camera head during the surgery.
7. Special anti-jamming processing,effectively handle the disturbing voltage produced by high frequency electrotome,avoiding influencing surgery images.


Specification:


Technical Data

CCD-sensor: 1/3interline CCD*1

with micro lens and color mosaic filter

Operating temperature:-10℃-46℃

Resolution:720 lines

Size: 30*32*74(W*H*L)

Min sensitivity:≤1Lux(F2.0)

CCD cable:≥3m

Signal/Noise ratio(S/N):≥70dB

White/Balance (W/B): Auto/Manual

Gain: Auto/Manual

Size: 335*100*340mm (W*H*L)

Shutter: 1 / 60s -1 / 10000s

Safety Standard: IEC601-1

Video outputs: 2 x BNC, 2 x Y/C

Power supply: AC110-240V, 50/60HZ

User settings: Five user settings (A-B-C-D-E)

Fuses:φ5 x 20mm 250V 2A


1.Packing&Shipping2.72.5Our certificate XINDRAY MIC证书 NEW
