1. SPO2(Optional)
2. Voice prompt
3. Standard built-in Recorder, Defibrillation discharge trigger recording
4. The ECG waveform via paddle electrode
5. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
6. Standard Li-ion battery
XRME220209438
XINDRAY

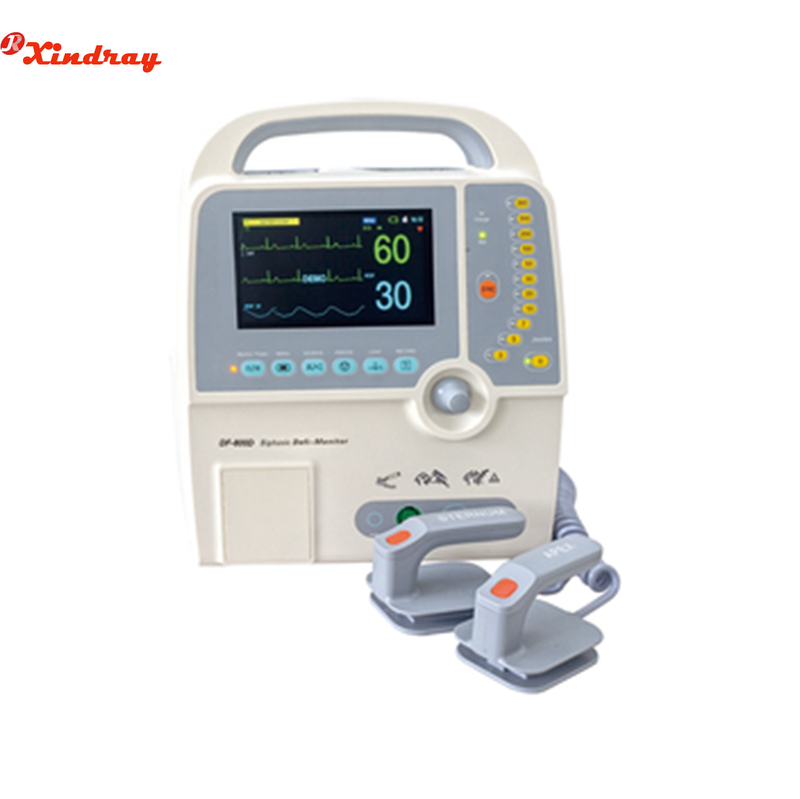

Feature:
1. SPO2(Optional)
2. Voice prompt
3. Standard built-in Recorder, Defibrillation discharge trigger recording
4. The ECG waveform via paddle electrode
5. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
6. Standard Li-ion battery
Specification:
(1)Defibillator type:Manual,synchronized,Asynchronized
(2) Energy accuracy:<+1%
(3) Energy selection:0.3.5.7.10.20.30.50.100.200.300.360joules(nominal at a resistance of 50)
(4) Charging time:Maximum 10 seconds to 360 Joules
(5) Standard adult/pediatric paddles:reusable external adult paddles (pediatric paddles integrated)
(a) AC Power supply :100v-240v,50hz/60hz
(b) Vehicle voltage(option):dc 12v
(1) battery type:rechargeable lead-acid battery(12v 2.0ah *2)
(2)Charing time:time-minimum of 4 hours for full charging
(3)battery charging:during ac power supply operation of the device
(4)charing/low battery indication:red led
(5)battery capacity:100% of the battery will provide 120-min monitoring;and 35 discharges at 360 joules
Lcd dimensions 7-inch
Type:high resolution true-color graphic
Resolution:480*234
ECG lead: I.II. III AVR AVL AVF V1-V6
S-T segment analysis: -2.0-2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000VAC/50HZ voltage in
isolation and work against electrosurgical knife and defibrillation
Measurement method.:Thoracic impedance
Standard parameter &configuration
ECG/ RESP/DEFIBRILLATOR
Recorder Liion battery (11. 1V 4AH X2)
Feature:
1. SPO2(Optional)
2. Voice prompt
3. Standard built-in Recorder, Defibrillation discharge trigger recording
4. The ECG waveform via paddle electrode
5. Heart Rate, Lead, Alarm On/Off, Delivered Energy Displayed on a screen
6. Standard Li-ion battery
Specification:
(1)Defibillator type:Manual,synchronized,Asynchronized
(2) Energy accuracy:<+1%
(3) Energy selection:0.3.5.7.10.20.30.50.100.200.300.360joules(nominal at a resistance of 50)
(4) Charging time:Maximum 10 seconds to 360 Joules
(5) Standard adult/pediatric paddles:reusable external adult paddles (pediatric paddles integrated)
(a) AC Power supply :100v-240v,50hz/60hz
(b) Vehicle voltage(option):dc 12v
(1) battery type:rechargeable lead-acid battery(12v 2.0ah *2)
(2)Charing time:time-minimum of 4 hours for full charging
(3)battery charging:during ac power supply operation of the device
(4)charing/low battery indication:red led
(5)battery capacity:100% of the battery will provide 120-min monitoring;and 35 discharges at 360 joules
Lcd dimensions 7-inch
Type:high resolution true-color graphic
Resolution:480*234
ECG lead: I.II. III AVR AVL AVF V1-V6
S-T segment analysis: -2.0-2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000VAC/50HZ voltage in
isolation and work against electrosurgical knife and defibrillation
Measurement method.:Thoracic impedance
Standard parameter &configuration
ECG/ RESP/DEFIBRILLATOR
Recorder Liion battery (11. 1V 4AH X2)
