XRMD21011209
XINDRAY

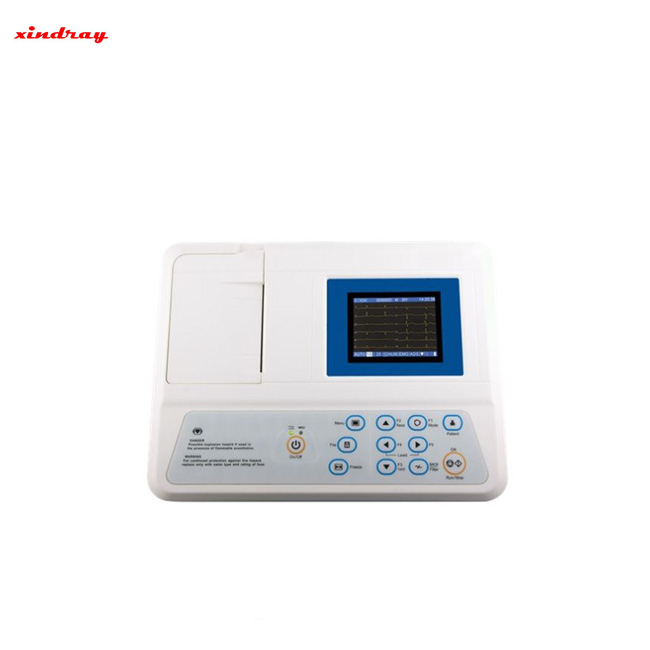

Portable Three Channel ECG Machine
Product Features:
Portable and delicate design, easy to operate
Accurate pulse pace identification function
High accuracy digital filter, automatic baseline adjustment
Working modes: Manual, Automatic, Arrhythmia Analysis, Storage
80mm, 3 channel format recording, excellent automatic interpretation
320*240 graphic 3.5" color LCD to simultaneously display ECG information
250 patient cases storage( SD card storage is optional)
Detailed patient information record
With "Freeze" function
USB/RS232 ports support USB storage, laser printing and PC ECG software(Optional)
Product Specification:
| Lead: Standard 12 leads | Voltage tolerance: ≥±500mV |
Lead acquisition: 12bits/1000Hz synchronously | Time constant: ≥3.2s |
Frequency response: 0.05-160Hz(-3db) | |
Filter: AC Filter: 50Hz/60Hz | Noise level: ＜15μVp-p |
Inter-channel interface: ≤0.5mm | |
Sensitivity(mm/MV): 2.5, 5, 10, 20, 40, Auto | |
CMMR: ≥120dB(with AC Filter) | Paper speed(mm/s): 6.25, 12.5, 25, 50 |
Input Circuit: Floating: Protection circuit against | Recording mode: 1ch, 3ch, 3ch+ |
Paper specification: High resolution thermal paper 80mm*20m, roll | |
Input impedance: ≥50MΩ | |
Input circuit current: ≤0.05μA | Power supply: AC 110-230V(±10%) |
Patient current leakage: ＜10μA | |
Calibrating voltage: 1mV ± 2% | Dimension: 300mm*230mm*75mm, 2.8kgs |
Packing list:
Main Machine: 1 unit
Patient Cable: 1pc
Chest Electrodes: 6pcs
Limb Electrodes: 4pcs
Power Cable: 1pc
Grounding cable: 1pc
Thermal paper: 1 roll
Fuse: 2pcs
