XRMD21020405
XINDRAY

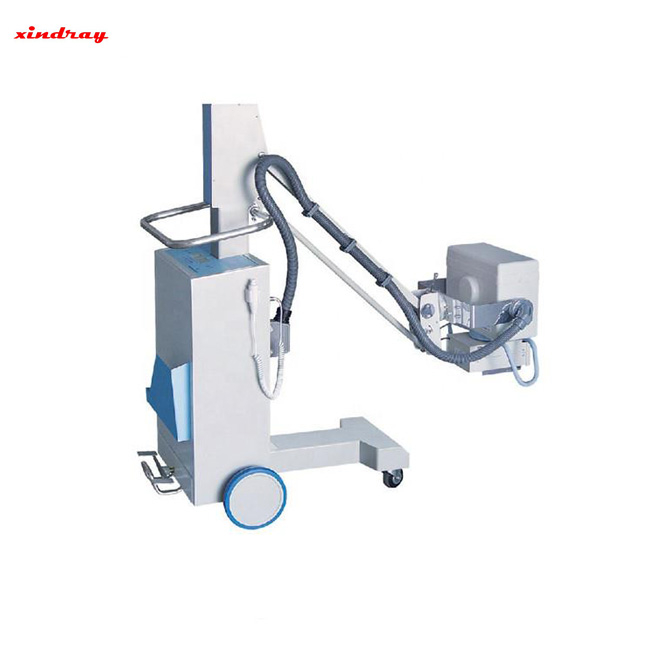

High Frequency Mobile Portable Medical X-Ray Equipment Price
Product features
--Our high frequency technology assures the best image in every operating condition along with reduced patient dose and extended x-ray tube life time.
--The generator provide the right amount of penetration, reducing exposure times and retakes.
--The parameter can be adjusted by the kV and MAs. Multiple security protect function such as over-voltage, over-current.
--50 preset exposure programs allow extensive possibilities to optimize the exposure and processing parameters according to your preferences.
--Fault automatic protection setting and fault alarming display.
--Parameters are automatically storage when power cut off.
--Adopt rotating beam limiting device to adjust the X-ray field and angle freely.
Technical Specification:
Power Output | 5KW |
Main Inverter frequency | 50KHZ |
X-ray tube | 1.5 |
Tube Voltage | 40~120kV(interval 1kV) |
Tube Current | 40~49kV 100mA 1~180mAs |
50~59kV 77mA 1~140mAs | |
60~69kV 64mA 1~125mAs | |
70~79kV 55mA 1~110mAs | |
80~89kV 49mA 1~100mAs | |
90~99kV 44mA 1~80mAs | |
100~109kV 32mA 1~63mAs | |
110~120kV 25mA 1~50mAs | |
mAs | 1.0~180mAs(46 steps) |
Power supply | 220V ±10% 50HZ Inner-resistance≤1.0Ω |
Operation Method | Wire/wireless control |
