XRXM200
XINDRAY

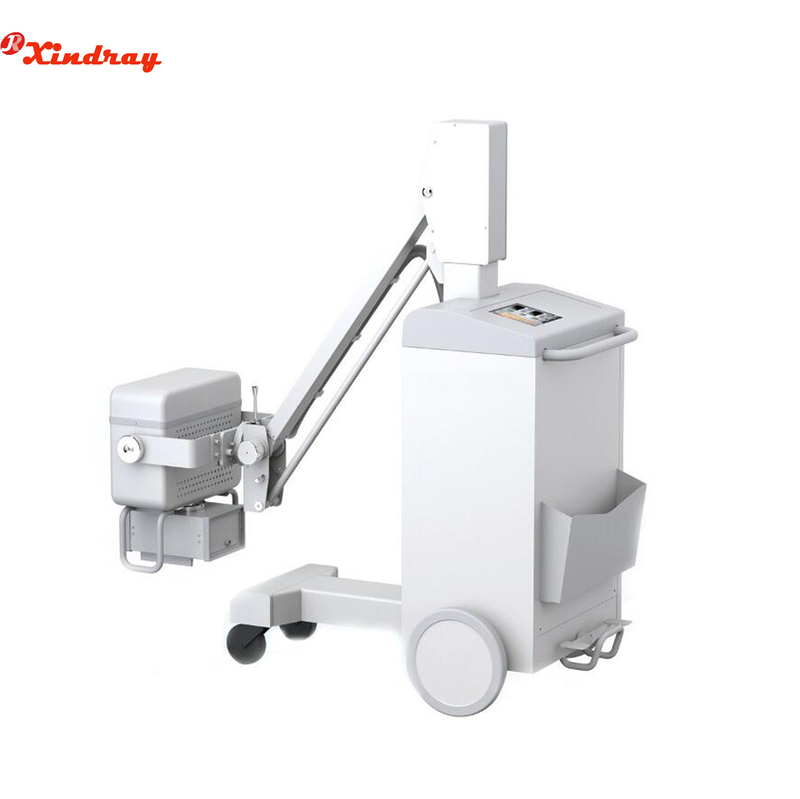

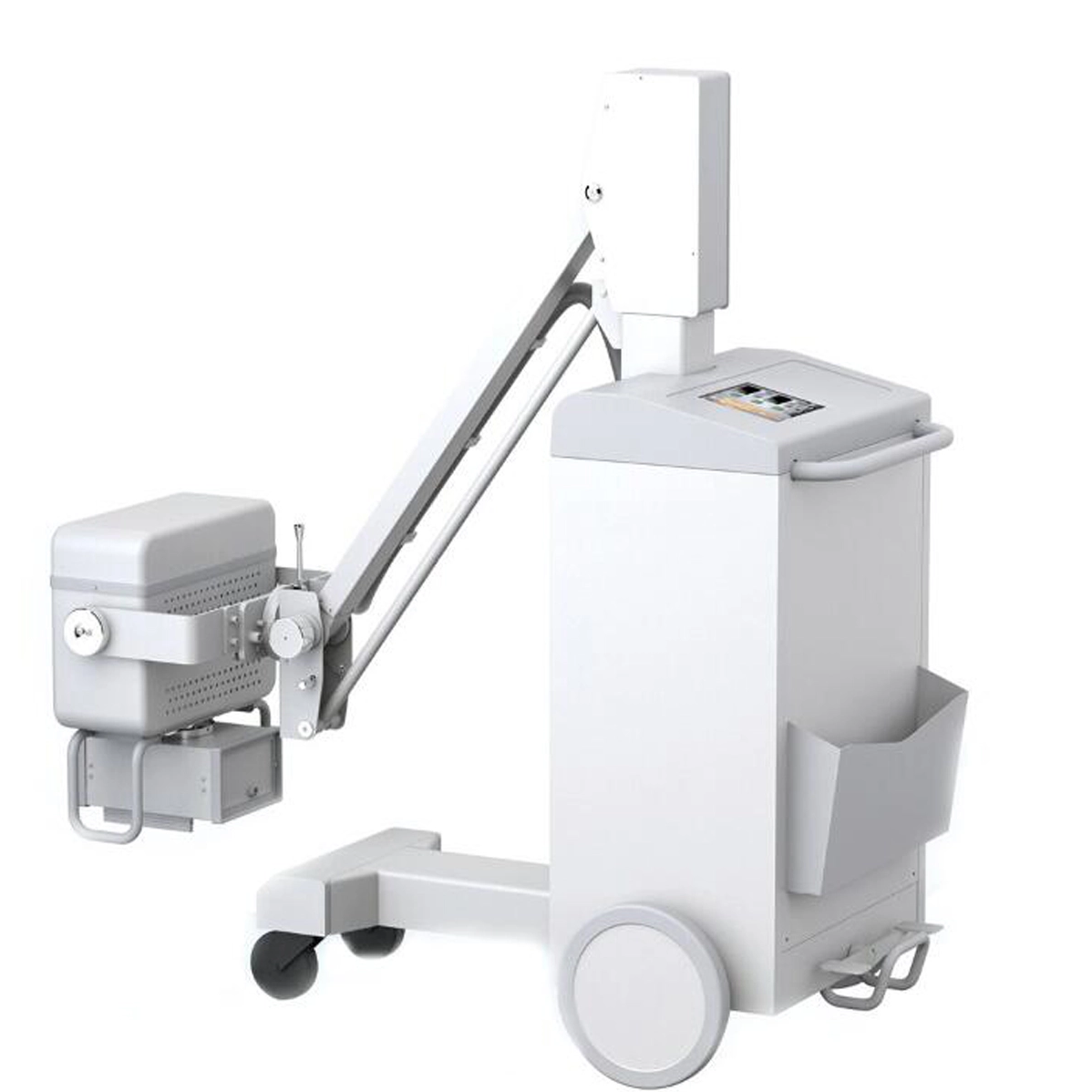

200mA Mobile X-ray Machine
Product features
It is an economic and practical mobile 200ma X-ray Machine, can be widely used in radiology, orthopedic, medical examination department, emergency room, intensive care unit, operating room and neonatal pediatric, it fully meet the demand of hospital digital radiography.
Main Components | Technical Specifications | |
Flat Panel Detector optional | X-ray Sensitive Area | 14*17inch |
Generator | Standard Power | 15KW |
kVp Range | 40~125kVp | |
mAs Range | 0.5~200mAs | |
Anode Heat Content | 150kHU | |
X-ray Tube | Weight | 220kg |
Height | 149cm | |
Width | 65cm | |
Anode angle | >=120 | |
Focal length from the floor in the range | >55 – 185 cm | |
Horizontal removal of the tube | >100 cm | |
Tube Tilting Angle | ±90° | |
Tube Vertical Rotation Angle | -30°~+90° | |
Arm's Folding Range | ±60° | |
| SID | 507~2000mm | |
Power Supply | 220 V ± 10 %, 50 - 60 Hz |
High-index Image Chain
32KW High power & high voltage generator and large heat capacity of x ray tube provide strong foundation for output
Opitonal Wired flat panel detector and makes position more flexible. High pixel provides solid foundation for high quality images.
Light Weight and Flexibility
Compact structure, in narrow space, MobileCooper can achieve full circle rotation, easy movement.
New folding stand design, when radiographer drives the equipment, the line of sight is not covered, can look straight ahead of the road, avoiding collision.
New Power Design
Dual power supply, exposure
