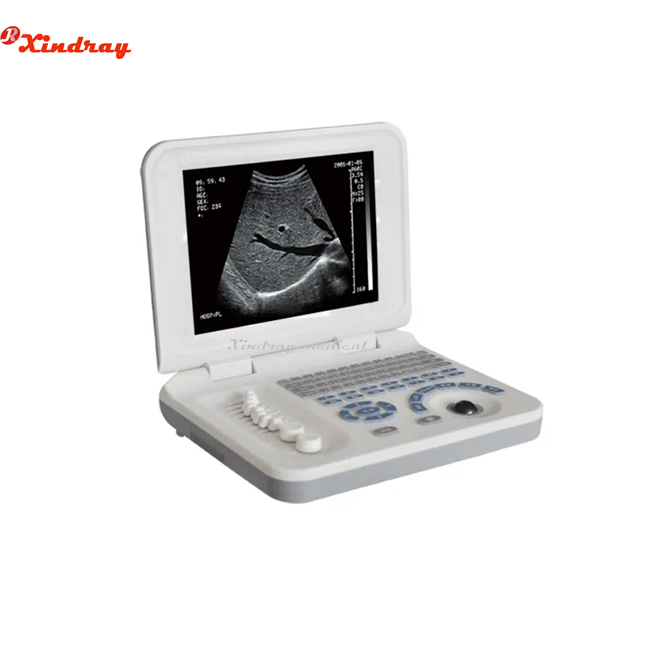

Portable Laptop Ultrasound Scanner
Features:
Diagnosis of liver, gallbladder, kidney, spleen, pancreas, heart, thyroid gland, breast, uterus, bladder, ovary, etc.
Clinical examination and diagnosis of abdomen and department of obstetrics and gynecology in the hospitals of county, rural-town and town.
Supervising stations of Planned Parenthood in the city, county, rural-town and town to be suitable for the examinations of early pregnancy, contraceptive ring, perinatal period of pregnant woman, etc.
Specifications:
Display Mode: B, B/B, 4B, B+M, M.
Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0.
Scanning depth: ≥ 170mm
Lateral resolution: ≤ 2mm (depth≤80mm), ≤ 3mm (80"depth≤130mm)
Longitudinal resolution: ≤ 1mm (depth≤80mm), ≤ 2mm (80"depth≤130mm)
Blind: ≤ 5mm
Geometric position accuracy: lateral ≤ 15%
Longitudinal: ≤10%
Dynamic range: 0~120dB adjustable.
Monitor: 10.4 inch high-resolution.
Grey scale: 256.
Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL,etc), expected date of confinement and so on.
Annotation: hospital name, patient's name, gender and age, full-screen character annotation, real-time clock display.
Body marks: 64.
Puncture guide: displayed under B mode.
Gain control: 8 segments TGC and full gain can be adjusted respectively.
Image reverse: left/right, black/white, up/down.
Cine loop: 256.
Permanent storage: 128.
Image display: continuous playback, pieces of view Video
Output: SVGA, PAL, video recorder and Image workstation etc.
USB output
Machine size(mm): 300(L)×245(W)×60(H)
Power: AC 220V±22V 50Hz
Input power: ≤ 300VA
Continuous work hours: ≥ 8h
Standard Configuration:
.Scanner Body | 1pc |
3.5Mhz Convex Probe | 1pc |
Charger with a set of wires | 1set |
Bottle of USG gel | 1pc |
Wrap Bag | 1pc |
User Manual | 1pc |
Transportation Case | 1pc |
Optional:
·5.0MHz Micro-convex Probe
·6.5MHz Trans-vaginal Probe
·7.5MHz Linear Probe
.Video Printer
