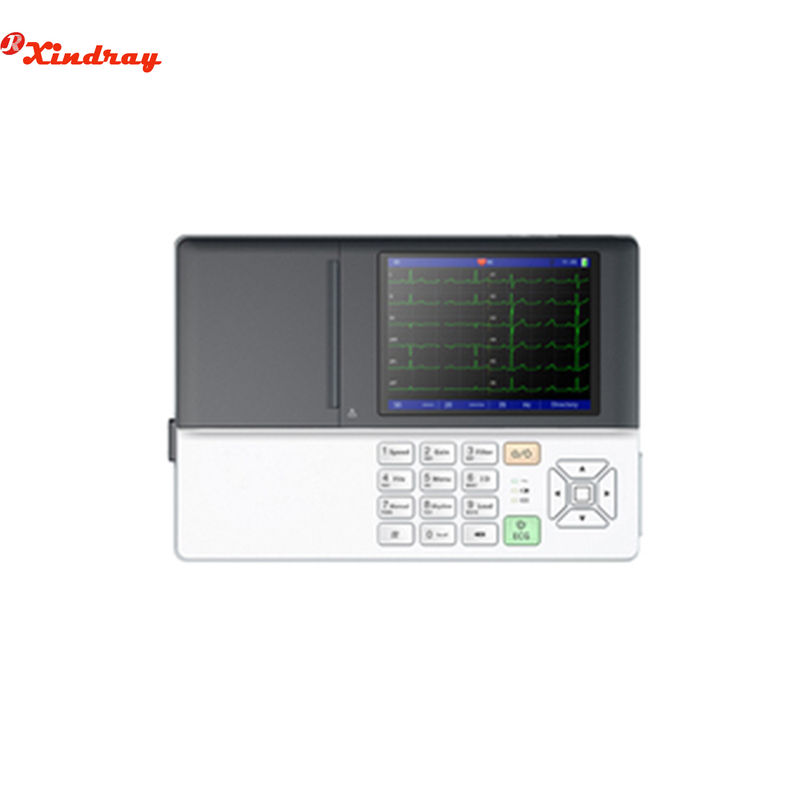

XRME220205356
XINDRAY
Feature:
Small size, light weight and delicate design, very convenient to use.
7 leads synchronously acquisition and display, with auto-interpretation function.
High accuracy digital filter, auto baseline adjustment.
80mm, three channel recording, recording format: 1ch+, 3ch, 3ch+.
Working modes: Manual / Auto / R-R / Store.
320×240 graphic, 3.5 inch color LCD to display detailed ECG information.
250 cases storage and replay ( SD card is optional ) .
Built-in rechargeable Li-ion battery supports continuously working for about 9 hours.
USB / UART interfaces support USB storage, laser printer printing and PC ECG management software( optional ).
Measurement: 260mmx217mmx58mm, 1.7kgs.
Specification:
Digital sampling rate: 32000Hz
A/D conversion: 24 bits
Frequency response:0.01-350Hz
Support double-pole pacemaker detection
Support thermal folded and roll paper
Original iFilte「TM adaptive filtering technology has greatly improved the EGG signal quality
Recording weak signal accurately
Waveform comparison
Innovative Ergonomic Design
The lightest 3-Ch ECG, Only 1,2kg
5.6 inch high resolution LED screen
Scratch-able latex keyboard
Three-pronged ECG leads, Effectively reduce winding
Support thermal folded and roll paper
Suitcase
Three-pronged ECG Leads, Effectively reduce winding
Trolley
Support connecting with HIS, EMR, PACS and other hospital information system without PC workstation
Feature:
Small size, light weight and delicate design, very convenient to use.
7 leads synchronously acquisition and display, with auto-interpretation function.
High accuracy digital filter, auto baseline adjustment.
80mm, three channel recording, recording format: 1ch+, 3ch, 3ch+.
Working modes: Manual / Auto / R-R / Store.
320×240 graphic, 3.5 inch color LCD to display detailed ECG information.
250 cases storage and replay ( SD card is optional ) .
Built-in rechargeable Li-ion battery supports continuously working for about 9 hours.
USB / UART interfaces support USB storage, laser printer printing and PC ECG management software( optional ).
Measurement: 260mmx217mmx58mm, 1.7kgs.
Specification:
Digital sampling rate: 32000Hz
A/D conversion: 24 bits
Frequency response:0.01-350Hz
Support double-pole pacemaker detection
Support thermal folded and roll paper
Original iFilte「TM adaptive filtering technology has greatly improved the EGG signal quality
Recording weak signal accurately
Waveform comparison
Innovative Ergonomic Design
The lightest 3-Ch ECG, Only 1,2kg
5.6 inch high resolution LED screen
Scratch-able latex keyboard
Three-pronged ECG leads, Effectively reduce winding
Support thermal folded and roll paper
Suitcase
Three-pronged ECG Leads, Effectively reduce winding
Trolley
Support connecting with HIS, EMR, PACS and other hospital information system without PC workstation
