-12 leads synchronous acquisition, display on the same screen, synchronization print
-9 inch color LCD screen, support touch screen operation
-Manual/Auto printing: 3CH+3R, 6CH, 6CH+1R, 12CH, 5 minutes arrhythmia analysis of waveform
-60 seconds rhythm analysis of waveform
-200 ECG data storage, SD card supported
-Automatic analysis, calculation, waveform review
-Alarm of electrodes breaking off, Human diagram indicates the unconnected lead
-V1,V3,V5 chest lead examination mode, fit for massive physical examination
-Built-in rechargeable lithium battery, AC/DC power conversion
-Support ECG-20NT digital ECG work station, achieve depth analysis of ECG
XRME220205355
XINDRAY
Feature:
-12 leads synchronous acquisition, display on the same screen, synchronization print
-9 inch color LCD screen, support touch screen operation
-Manual/Auto printing: 3CH+3R, 6CH, 6CH+1R, 12CH, 5 minutes arrhythmia analysis of waveform
-60 seconds rhythm analysis of waveform
-200 ECG data storage, SD card supported
-Automatic analysis, calculation, waveform review
-Alarm of electrodes breaking off, Human diagram indicates the unconnected lead
-V1,V3,V5 chest lead examination mode, fit for massive physical examination
-Built-in rechargeable lithium battery, AC/DC power conversion
-Support ECG-20NT digital ECG work station, achieve depth analysis of ECG
Specification:

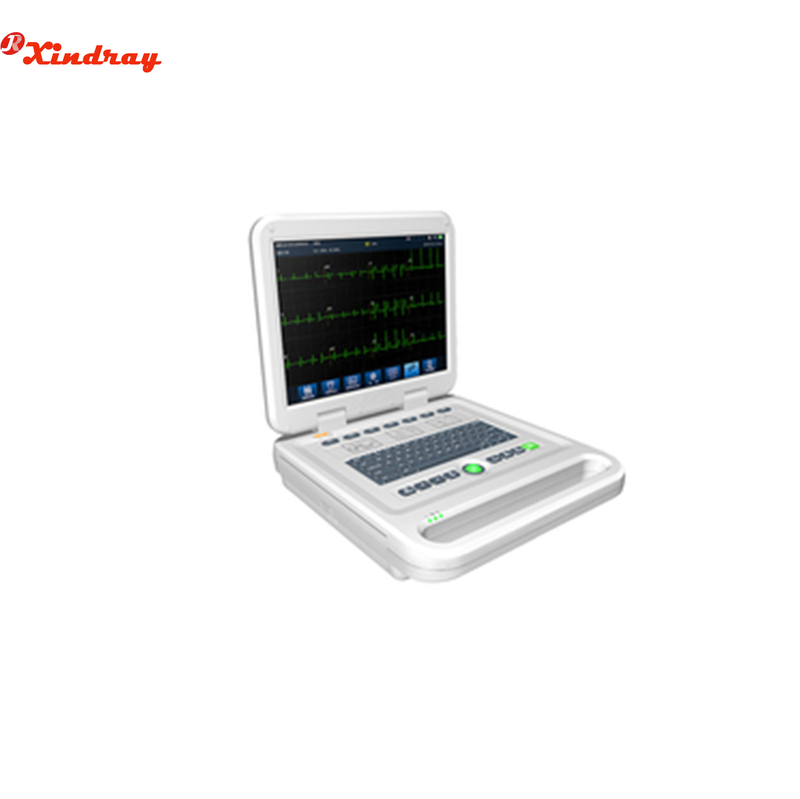

High-end 12-Ch ECG machine
Digital Sampling Rate:32000Hz
A/D Conversion: 24 bits
1s baseline stability
Frequency Response:0.01-350Hz
Support double-pole pacemaker detection
Support thermal folded paper
TM Original iFilter adaptive filtering technology has greatly improved the ECG signal quality
Glasgow ECG analysis algorithm
ST segment elevation myocardial infarction diagnosis ability is in the industry leading position
Support advanced analysis function like VCG, Time VCG,VLP etc
Recording weak signal accurately
Recording weak signal accurately
Waveform Comparison
| Auto analysis validation results | ||||||||
| P-wave time limit (ms) | PR Interval (ms) | QRS Complex (ms) | QT Interval (ms) | |||||
| Average Deviation | Standard Deviation | Average Deviation | Standard Deviation | Average Deviation | Standard Deviation | Average Deviation | Standard Deviation | |
| iMAC results | 0.5 | 9.3 | -1.9 | 7.0 | 0.1 | 4.9 | 4.5 | 12.2 |
| IEC60601-2-51 latest requirement | ±10 | 15 | ±10 | 10 | ±10 | 10 | ±25 | 30 |
Glasgow algorithm efficiently improves the accuracy of the measurement
and credibility of auto-analysis
More specific than cardiologists in reporting STEMI
| Comparison of 601 male myocardial infarction patients diagnosis | ||
| Age Group | iMAC automatic diagnostic effective「ate | Cardiologists diagnostic effective「ate |
| 18-39 | 100% | 87% |
| 40-49 | 96% | 87% |
| 50-59 | 93% | 90% |
| 60-69 | 93% | 82% |
| 70-79 | 92% | 91% |
| ^80 | 91% | 93% |
Only this algorithm utilizes age, gender, race, clinical history in making an
Interpretation
Diagnosis utilizes gender
Diagnosis utilizes age
Diagnosis utilizes race
Diagnosis utilizes medication history
Support advanced analysis function like VCG, Time VCG,VLP etc
Innovative Ergonomic Design
Protable
Three-pronged ECG leads, Effectively reduce winding
Trolley
Support connecting with HIS, EMR, PACS and
other hospital information system without PC
Workstation
