XRMD210104012
XINDRAY

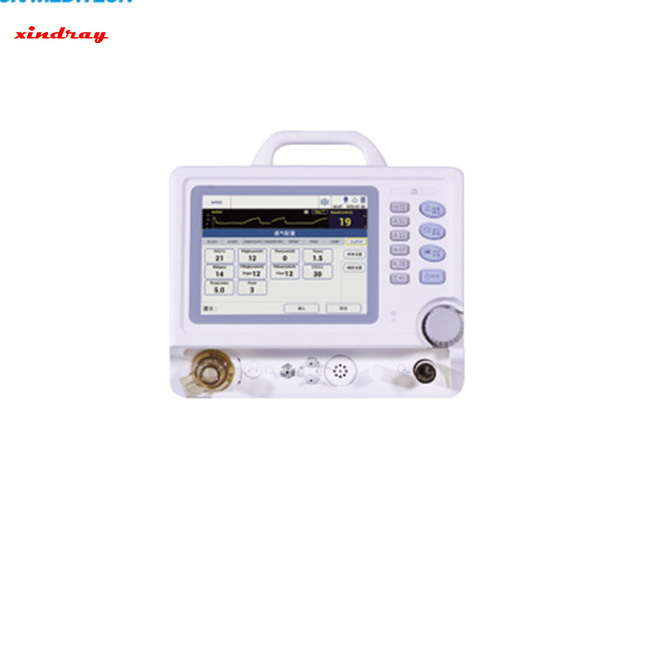

Emergency And Transport ICU Grade Electronic Ventilator
product features
Fulfill the clinical needs for emergency care, intra-hospital transportation and ICU
Visible self-test and smart alarms system ensure patient's safety in all situations
Expiratory valve is easily detached and autoclavable to avoid cross-infection
Intuitive user-friendly interface for wonderful operating experience
As one of the smallest care ventilator in the world, CNME-2000D can be perfectly portable
Comprehensive ventilation modes as well as powerful tools such as Sigh, Leakage compensation and Flow support meet the patient's individual requirements.
Technical Specification:
Patient types | Adult, Pediatric(>5kg) |
Ventilation modes | Invasive: A/C(V), A/C(P), SIMV(V)+PS, SIMV(P)+PS, PRVC, PSV, Extra Breath, CPAP, Dual PAP(optional) Non invasive: PCV, SIMV(P)+PS, CPAP, PSV |
Tidal volume | 20-2000ml |
Ventilation frequency | 4-100 bpm (increment: 1 bpm) |
Inspiration time | 0.2-10 s(increment: 0.1s) |
FiO2 | 21%-100% |
Flow trigger | 0.5-20L/min |
Pressure trigger | -20-0.1cmH2O |
Pressure control | 1-100 cmH2O |
Pressure support | 1-100 cmH2O |
Electronic PEEP | 1-50 cmH2O |
Nebulizer | 30 minutes |
Direct access function | 100% O2 2 min, Inspiration hold, Expiration hold, Extra Breath, Freeze, Nebulizer(optional) |
Monitoring | VTI, VTE, MV, MVspont, Ppeak, PEEP, Pplat, Pmean, Pmin, PEEP RR, I:E, FiO2, Compliance, Resistance |
Waveform | P-T, F-T, V-T |
Loops | P-V, F-P, F-V |
System log | 500 events(setting and alarm) |
Alarm | Visual and acoustic alarms with three levels Volumes: Vte high/low, MV high/low Pressure: Paw high/low, Apnea, Continuous high airway pressure O2 supply pressure high/low, Air supply pressure high/low RR high/low, FiO2 high/low Power: low battery capacity, Battery failure, battery in use |
Dimensions(W*H*D) | 311*304*292mm |
Communication Interface | RS232 |
Screen | 8.4 inch LCD touch screen |
Net weight | 7.5kg |
AC power | 100-240V, 50/60Hz |
Battery run-time | 2-4 hours |
