Proposal Dynamic FPD
Feature:
FOINOE Dynamic DR is a highly integrated medical equipment. It can perform digital radiography, digital fluoroscopy, digital gastrointestinal, digital contrast and interventional radiological imaging and other inspection (such as X-ray positioning, X-ray puncture). It mainly consists of: electric diagnostic bed, high frequency generator, dynamic detector, controlling console, workstation and ancillary equipment.

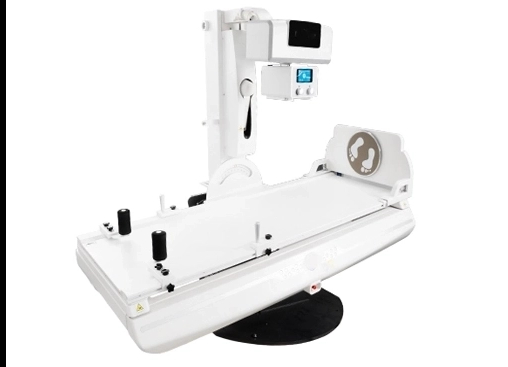

The schematic diagram of the machine is as follows:
Dynamic DR, multi-functional solution
By using Dynamic technology, radiographer can perform Radiography and Fluoroscopy with one single X-Ray machine. Alternatively, Dynamic DR can capture high-quality static image during 17x17 view size fluoroscopy with 9M pixels “Spot-Film”, which is a major advancement to the diagnostic pattern of radiology department today. With Foinoe Dynamic DR DTP571 you will receive a 2-in-1 system for digital radiography and fluoroscopy which enables you to perform a wide range of digital X-ray applications. You will benefit from enhanced room utilization, faster workflow, increased patients and optimal return on investment.
Dynamic flat panel detector with 430mm x 430mm max view area The large 430mm x 430mm MAX dynamic flat panel detector ensures excellent coverage for both radiography and fluoroscopy imaging and provides high-resolution images for more accuracy and efficiency. The large 430mm x 430mm view area is suitable for examination of any anatomic region. The combination of wide coverage and high image resolution extends the application of the fluoroscopy suite to areas such as chest, pelvis and extremities, which can’t be done easily with conventional image intensifier based systems. Fluoroscopy machine with intensifier has small imaging area with diameter of 9 or 12 inches that requires to move x-ray tube, detector, and table top to adjust positions to get the entire pelvic, which results in longer time for exposure and finally increases more radiation for patients. For traditional fluoroscopy, the images are a little blur and takes more time to get, and the lesion is not easy to capture.
he flat panel detector delivers sharp and accurate images to support your diagnosis and is not affected by geometric distortion which is typical of Image Intensifiers.
(I)High resolution images for brilliant results
No compromise on image quality when it comes to radiography and fluoroscopy. High resolution images with up to 9M pixel matrix deliver clinical results comparable to images acquired with state-of-the-art detectors dedicated to radiography.
(II)Smooth digital workflow, improved image quality
Your digital images are instantly available without handing cassettes or waiting for film processing. You can benefit from a digital environment with a smooth, accelerated workflow, higher throughput and less waiting time for your patients, and specific digital processing algorithms for individual anatomical regions recover image visualization in under- and overexposed regions. As a result, you will experience improved image quality and fewer retakes.
(III)Enhanced image quality improves diagnostic confidence
Benefits from cutting-edge post-processing features, reduces noise and increases both detail contrast and sharpness of radiographic images, the image contrast in critical regions is improved to further enhance detail recognition of fluoroscopic sequences.
Intelligent Efficient Automatically Enhancement. This technology of Image processing has greatly improved the consistency, softness, spatial gradation and texture fineness of image.
⚫ iGCR：intelligent Grayscale Compensation of ROI. iGCR can recognize the effective
exposure area through ROI recognition technology and compensate the gray of the region. To enhance the RAW image processing under different exposure parameter and keep the image quality at higher level.
⚫ iTE：intelligent Tissue Equalization. iTE Intelligent Tissue Equalization analyzes
organizational structure of the image, by using gray optimization and dynamic range compression technology, provides the best visual effects of bone, soft tissue and overlapping structure.
⚫ iCED：intelligent Context-Enhancing Denoise. iCED use the Motion-Compensated Temporal
filtering technique to reduce the noise under fluoroscopic image processing without blurring and artifacts. It can intelligently identify useful texture and detail information in the image, and
significantly suppress the noise at the same time it keeps the edge enhancement and contrast enhancement. To soften the image, enhance the depth of delicate texture after processing.
⚫ iMR：intelligent Metal-Recognition. It can intelligently analyze and recognize metal areas in
the image, and deal with them in special image processing, to avoid artifact around the metal and misdiagnosis.
⚫ iDG: intelligent DeGrid. It can intelligently recognize the artifacts of the grid to keep the
outstanding image effect.
⚫ Image Stitching. It is of great clinical significance for orthopaedic department to obtain important diagnostic basis before clinical operation and provide accurate reference for postoperative evaluation.
The DTP571 Dynamic system for both radiography and fluoroscopy examinations enables you to increase your workflow and patient throughput while at the same time enhancing your room utilization thanks to a
2-in-1 system and a wide range of applications.
(I)Enhanced efficiency and patient throughput
The DTP571 Dynamic system helps you to accelerate your workflow and patient throughput thanks to a single dynamic detector for all your high-resolution digital radiography and high frame rate fluoroscopy applications. Performing both imaging techniques with one single digital system saves your time and your money.
(II)Higher room utilization and maximized return on investment with 2-in-1 system
Idle room capacity is a common dilemma with dedicated fluoroscopy systems. They are usually operated at full capacity in the morning and then see utilization drop off in the afternoon. With the DTP571 Dynamic system you can increase utilization rates throughout the whole day. Higher capacity in fluoroscopy paired with an enhanced application spectrum in digital radiography helps you to increase room utilization and further maximize your return on investment. You will also benefit from a better space allocation as well as lower cost for maintenance and personnel training.
DTP571 incorporates a variety of features that enhance your experience – for example, an innovative remote-control console and table-side controls.
The newly designed remote-control console of DTP571 is highly compact, intuitive and user-friendly. Clear, easy-to-understand control elements greatly simplify system operation and organ program selection.
Table-side control is easy for operation without leaving the patient’s side and improves safety for patients and convenient operation for staff.
Proposal Dynamic FPD
Feature:
FOINOE Dynamic DR is a highly integrated medical equipment. It can perform digital radiography, digital fluoroscopy, digital gastrointestinal, digital contrast and interventional radiological imaging and other inspection (such as X-ray positioning, X-ray puncture). It mainly consists of: electric diagnostic bed, high frequency generator, dynamic detector, controlling console, workstation and ancillary equipment.

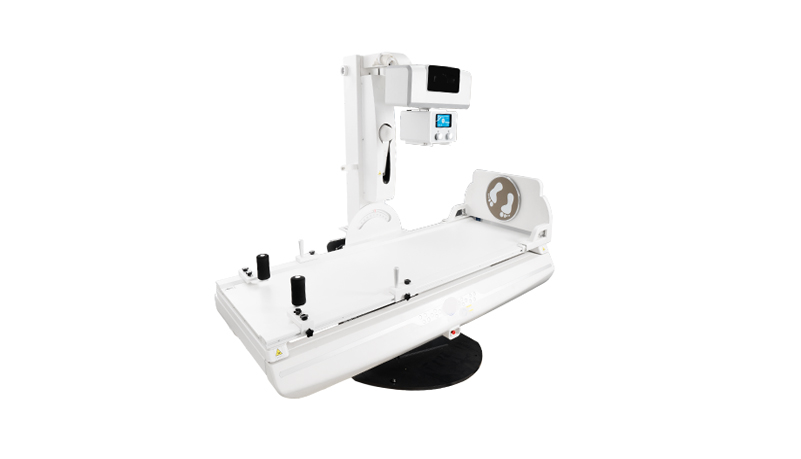

The schematic diagram of the machine is as follows:
