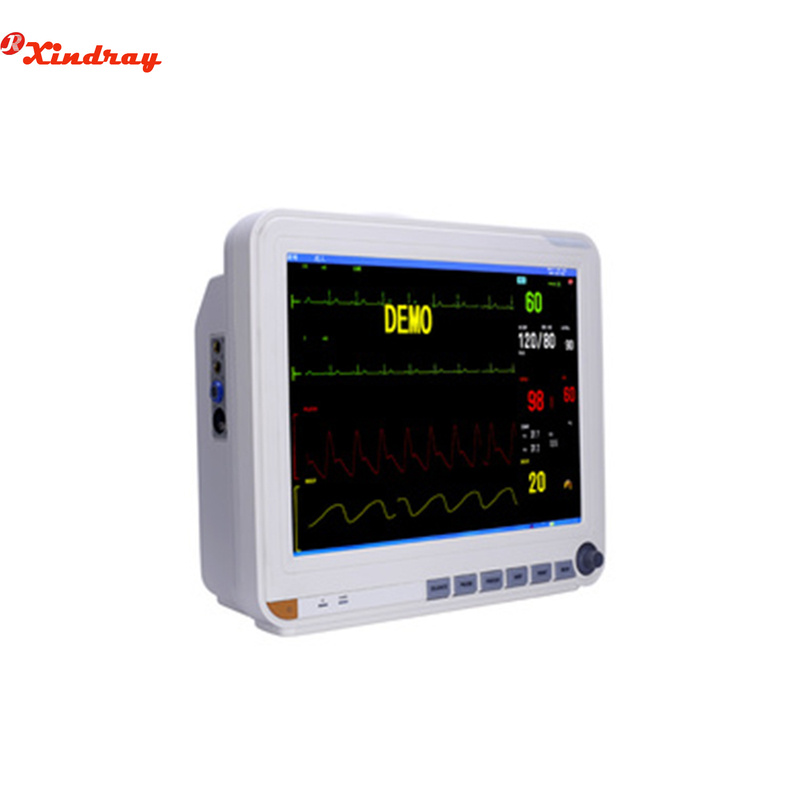

1. 6 Standard parameters: ECG, 2-TEMP, NIBP, SpO2, RESP, PR/HR
2. 12 inch high resolution color TFT LCD display
3. Real time S-T segment analysis, pace-maker detection
4. Indication of incorrect manipulation and malfunction analysis
5. Patient info input management function
6. Multi-lead ECG waveforms display in phase
7. Large volume of tabular and graphic trends information storage and easy to recall
8. Capture dynamic waveforms
9. Up to 2 hours working capacity of built-in rechargeable lithium battery
10. Unique accessory management cabinet
11. Networking capacity
12. Option: IBP, 24BP, ETC02, Built-in recorder, cart, wall shelf
XRME220208338
XINDRAY
Feature:
1. 6 Standard parameters: ECG, 2-TEMP, NIBP, SpO2, RESP, PR/HR
2. 12 inch high resolution color TFT LCD display
3. Real time S-T segment analysis, pace-maker detection
4. Indication of incorrect manipulation and malfunction analysis
5. Patient info input management function
6. Multi-lead ECG waveforms display in phase
7. Large volume of tabular and graphic trends information storage and easy to recall
8. Capture dynamic waveforms
9. Up to 2 hours working capacity of built-in rechargeable lithium battery
10. Unique accessory management cabinet
11. Networking capacity
12. Option: IBP, 24BP, ETC02, Built-in recorder, cart, wall shelf
Specification:
Monitor ECG,spo2, NIBP resp TEMP PR and HR
Yonker is one of the biggest medical and healthcare product manufacturers in China.
Range of product: Patient monitor, Pulse oximeter, Blood pressure monitor,
Thermometer, Fetal Doppler, UV radiation, etc
The whole production line is medical CE certified and mostly FDA certified
TECHNICAL SPECIFICATIONS
Quality Standards and classification
CE.ISO13485
Sfda:class ii b
Anti-electroshock degree class i equipment
(internal power supply)
Temp/spo2/nibp:bf
Ecg/resp:cf
Application Range
Adult/Pediatric/Neonatal/Medicine/Surgery/
Operating Room/ICU/CCU
Display
15’real color TFT screen
Environment
Operating environment:
Temperature: 0-40℃
Humidity: 15%-80%
Pressure: 86.0 kpa-106。0kpa
Transport and Storage environment
Temperature: -20-55℃
Humidity: 10%-90%
Pressure: 86.0 kpa-106。Okpa
Power Requirements
AC:100~240V,50Hz/60Hz
DC: Built-in rechargeable battery
Battery: 11.1V 24wh Li-ion battery
2h operating after full charge
5min operating after low battery alarm
Dimension and Weight
Equipment
370mm x 160mm x350mm, 4.1kg
Package:
420mm×380mmx340mm;8.0kg
Date Storage
Trend diagram/table: 720h
NIBP review 10000 events
Wave review. 12h
Alarm review: 200 alarm events
Support drug concentration titration analysis
ECG
5 Leads: RA. LA. LL RL. V
Lead mode：I，Ⅱ，Ⅲ，AVR，AVL，AVF，V
Gain: x 1.25mm/mv. 2.5mm/mv
5.0mm/mv 10mm/mv
20mm/mv (error<=5%)
Sweep speed: 6.25mm/s, 12.5mm/s,25mm/s
50mm/s (error<=土10%)
Bandwidth: Surgery 1-25 HZ
Monitor 0.5-40 Hz
Diagnostic 0.05- 130 HZ
Sensitivity: >200 uV P-P
CMRR:>=112db
Differential Input Impedance: >5M
ohm Electrode Offset Potential: 土300mv
Polarization Voltage：≥±500mV
input Impedance：≥5M
Calibration Voltage: 1mv土5%
St segment
St segment range:-2.0mv-+2.0mv
Accuracy 0.02mv
NIBP
method Oscillometry
Measure mode Manual Auto STAT
Measure interval in auto mode
1-5/10/15/30/60/90/120/180/240/480min
Measure period in STAT mode: 5min
Pulse rate range. 40-240bpr
Measure &alarm range: Adult
SYS 40-280mmhg
DIA 10-220mmhg
MEAN 20-240mmhg
Pediatric
SYS 40-220mmHg
DIA 10-160mnHg
MEAN 20-170mmhg
Neonatal
SYS 40~135mmH
DIA 10-100mmhg
MEAN 20-110mmhg
Static pressure measurement
Range:
0-300mmhg
Accuracy
±3mmH
Resolution: 1mmhg Accuracy
Max. Mean Error:±5mmHg
Max Standard Deviation: 8mmhg
Overpressure protection
Adult 300mmhg
Pediatric 240mmhg
Neonatal 150mmhg
Spo2
Measurement range: 0-100%
Resolution 1%
Accuracy: 70%-100% 土2%
40%~69%±3%
Pulse Rate
Measure/alarm range: 20- 300bpm
Resolution 1bpm
Accuracy ±3bpm
RESP
Method: impedance between RA-LL
Resp Impedance range: 0.3-3Ω
Base Impedance range: 200Ω-4000Ω
Bandwidth: 0.3-2.5HZ
Gain:×0.25.×0.5.×1.×2.×4
Resp rate
Measurement Range
Adult
0-120BRPM
Neonatal/Pediatric 0- 150BRPM
Resolution 1BRPM
Accuracy: 7-150brpm(土2BRPM)
0-6brpm(unspecified)
Apnea Alarm: 10-40s
TEMP
Channel 2
Measure&alarm range: 0-50℃
Resolution 0.1℃
Accuracy(no sensor): 土0.1℃(0-50℃
Standard accessories
NIAP cult tube
ECG cable electrodes
Spo2 sensor
Temp probe
Lithium-ion battery
Power cable
Operators manual
Optional accessories
Touch screen
Trolley bracket
Hanging bracket
Monitor recorder
Vehicle-mounted power supply
