XRMD210202015
XINDRAY

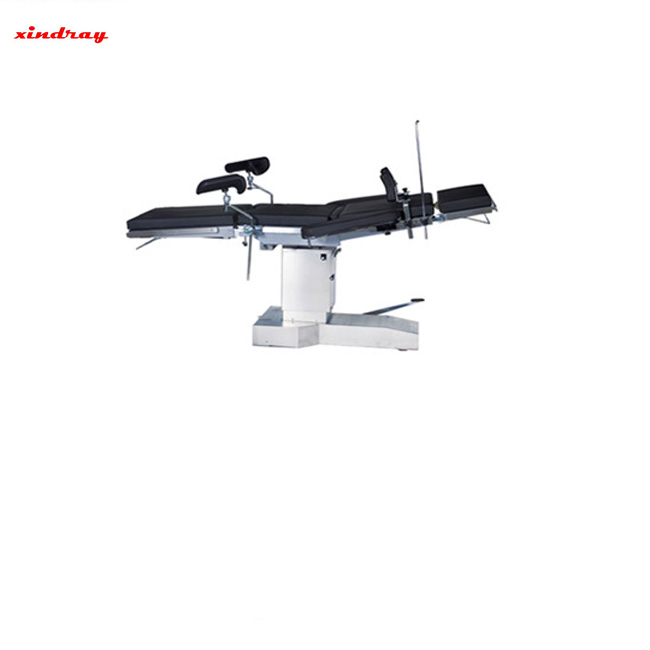

Hydraulic Operation Table
Product features
--Various actions are controlled by hydraulic pneumatic system and mechanical driven system.
--Head plate can be exchanged with leg plate which can fulfill the needs of C type arm complete examination, X-ray photography.
--Imported Y type sealing ring is durable.
--The table surface adopts quality carbon plastic plate, the mattress adopts high density memory sponge and is once formed, with no seam.
--Quality stainless steel 304 is used for base plate, column shield and rails on both sides of the table, easy for cleaning and sterilization.
Specification:
Table Length (mm): 2000±50
Table Width (mm): 500±20
Height Adjustment (mm): (700~950) ±50
Backboard Upwards: ≧60°
Backboard Downwards: ≧20°
Trendelenburg: ≧15°
Rev-Trend: ≧15°
Tilt(Left)/ Tilt(Right): ≧15°
Head board Upwards: ≧30°
Head board Downwards: ≧90°
Leg board Downwards: ≧90°
