Main unit
Sterile tubing sets with sensor
Shims of sensor( 3pcs).Emulsion tube and shim(5 pcs, L:approxI 16cm)
Power cable
 |
Main unit
Sterile tubing sets with sensor
Shims of sensor( 3pcs).Emulsion tube and shim(5 pcs, L:approxI 16cm)
Power cable
XRME220210447
XINDRAY
Feature:

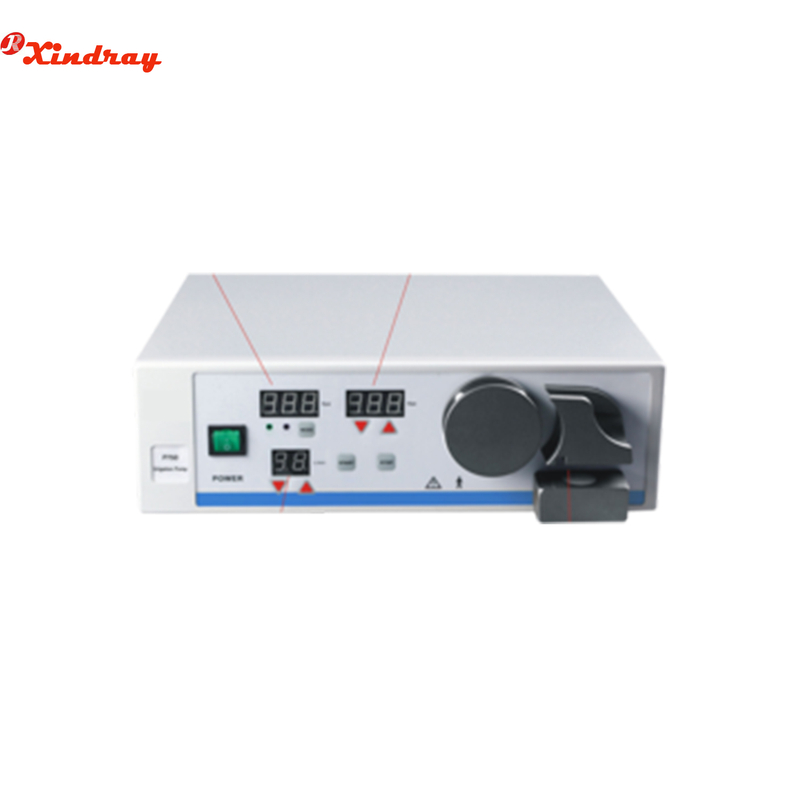

Main unit
Sterile tubing sets with sensor
Shims of sensor( 3pcs).Emulsion tube and shim(5 pcs, L:approxI 16cm)
Power cable
Specification:
Power supply:AC110/220V土10% ’ 50/60HZ0.5A
Fuses: φ5 x 20mm 250V 2A
Max. Power consumption: 100W
Pressure presetting range: 15-600mmHg (2- 80kPa,
error approx.±2kPa)
Flow rate: 0.1-1 .0 1/min (error approx. ±20%)
Signal/Noise ratio:≤55dB
Safety standard：IEC601-1
Storage temp; -15℃ to + 50℃
Operating temp: 0℃-45℃
Relative humidity: 30% to 85%
Dims: 340x335x 100mm
N. W.:11kg
Feature:
Main unit
Sterile tubing sets with sensor
Shims of sensor( 3pcs).Emulsion tube and shim(5 pcs, L:approxI 16cm)
Power cable
Specification:
Power supply:AC110/220V土10% ’ 50/60HZ0.5A
Fuses: φ5 x 20mm 250V 2A
Max. Power consumption: 100W
Pressure presetting range: 15-600mmHg (2- 80kPa,
error approx.±2kPa)
Flow rate: 0.1-1 .0 1/min (error approx. ±20%)
Signal/Noise ratio:≤55dB
Safety standard：IEC601-1
Storage temp; -15℃ to + 50℃
Operating temp: 0℃-45℃
Relative humidity: 30% to 85%
Dims: 340x335x 100mm
N. W.:11kg
