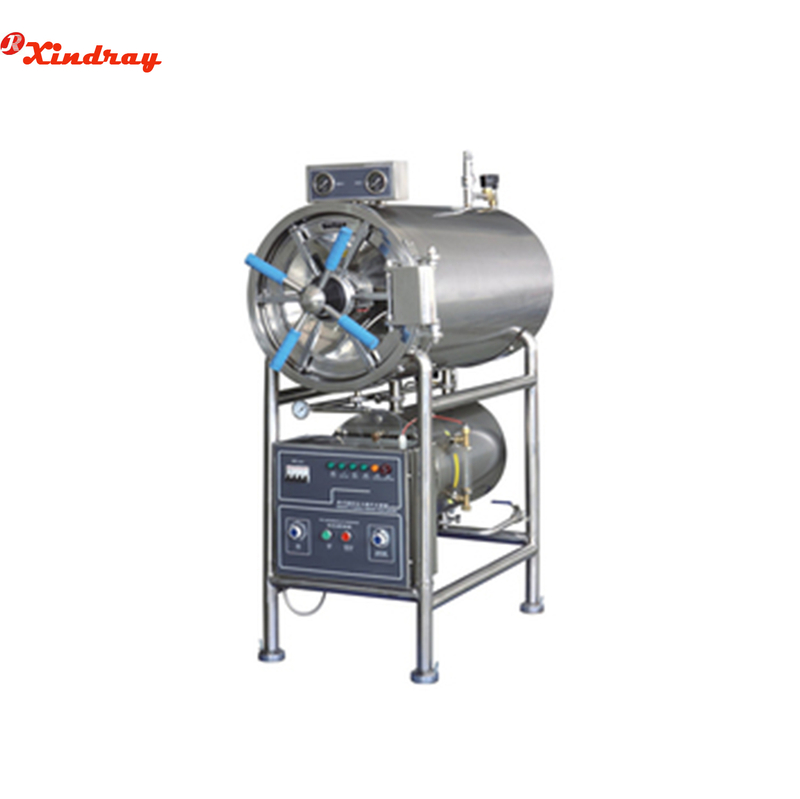

Horizontal cylindrical pressure steam sterilizer
Home » Products » IVD Product » Autoclave Sterilizer » Horizontal cylindrical pressure steam sterilizer

loading

Share to:
sharethis sharing button

Horizontal cylindrical pressure steam sterilizer

Feature:

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.
2.With drying function, suitable dressing drying.
3.With over-temperature, over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the doesn't closed well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel.
8.Touch screen colour display  and with  printer.
9.With vacuum pump



Availability:
  • XRME220308279

  • XINDRAY

Horizontal cylindrical pressure steam sterilizer

4

Feature:


1.Sterilizing course automatic sterilization controlled by computer, easy to operate.
2.With drying function, suitable dressing drying.
3.With over-temperature, over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the doesn't closed well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.
6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel.
8.Touch screen colour display  and with  printer.
9.With vacuum pump


Technical data:


Technical data

XRME220308279

XRME220308280

XRME220308281

Sterilizing chamber Volume

150L
φ440×850mm

200L
φ515×1000mm

280L
φ600×1000mm

working pressure

0.22MPa

working temperature

134℃

Adjustment of temperature

40℃- 134℃

Time of sterilization

0-99 min

Time of drying

0-99 min

Heat average

≤±2℃

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

Dimension

1400×600×1300

1400×670×1650

1400×770×1780

Transport dimension

1550×750×1850

1560×820×1850

1680×920×2100

G.W/N.W

320/240 KG

350/260 KG

465/365 KG
