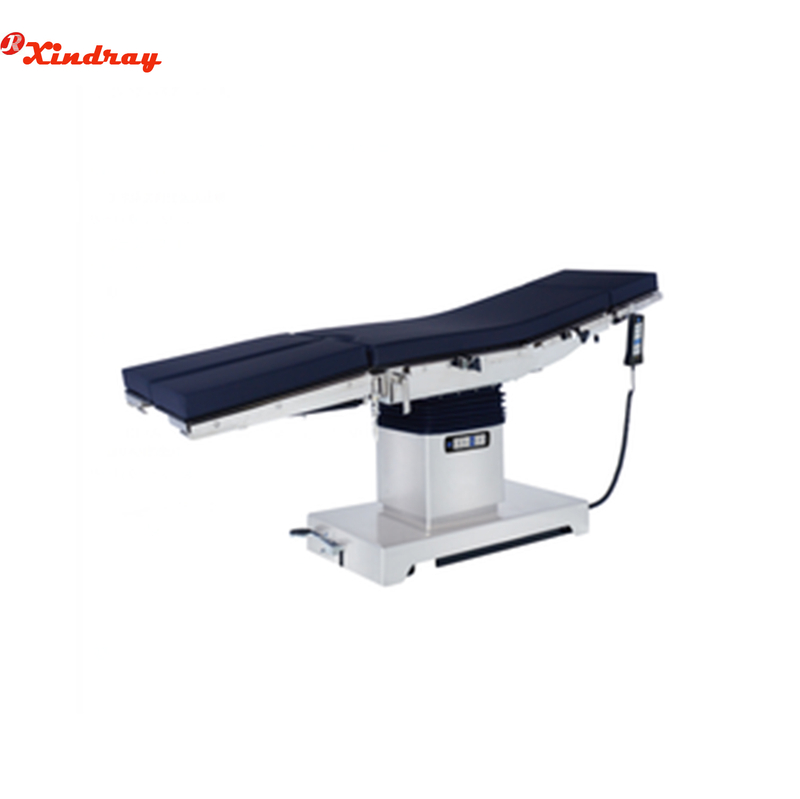

Electric Operating Table

Feature:

The bed surface adopts quality carbon plastic platethe,the table can slide which can fulfill the needs of C type arm whole body examination.
Panel control and remote control, with battery can fit for 50 sets operaingThe mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.Imported LINAK motor without noise and with long life-span.
The base seat and upright column covering are made of high quality 304 stainless steel which can be easily cleaned and sterilized.
Foot treadle brake device which is easy for moving operating table.
The leg part use spring gas control ,separate leg part.One press to “∧”or “∨”.
It has the function of auto-restoration.

Availability:



Inquire Add to Basket

Model:
XRME220202416
Brand:
XINDRAY

Product Description

Electric Operating Table

Feature:

The bed surface adopts quality carbon plastic platethe,the table can slide which can fulfill the needs of C type arm whole body examination.
Panel control and remote control, with battery can fit for 50 sets operaingThe mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.Imported LINAK motor without noise and with long life-span.
The base seat and upright column covering are made of high quality 304 stainless steel which can be easily cleaned and sterilized.
Foot treadle brake device which is easy for moving operating table.
The leg part use spring gas control ,separate leg part.One press to “∧”or “∨”.
It has the function of auto-restoration.

Specification:

Mode	XRME220210371
Table Length mm	2000±100
Table Width mm	520±20
Height Adjustment mm	(750~1000)±50
Horizontal and longitudinal movement mm	350±30
Backboard Upwards	≥70°
Backboard Downwards	≥15°
Trendelenburg / Rev-Trend	≥18°
Tilt(Left) / Tilt(Right)	≥15°
Head board Upwards	≥40°
Head board Downwards	≥90°
Leg board Upwards / Leg board Downwards	≥15°/ ≥90°
Leg board Outwards	≥180°
Waist board lifting mm	100±20
Lumbar upper corner “∧”	≤150°
Lumbar lower corner “∨”	≤120°
Main Voltage AC	220V±22V,50Hz±1Hz
Input power VA	300±10%
