CE FDA Approved Medical BPAP Device Non-Invasive Ventilator
Product features

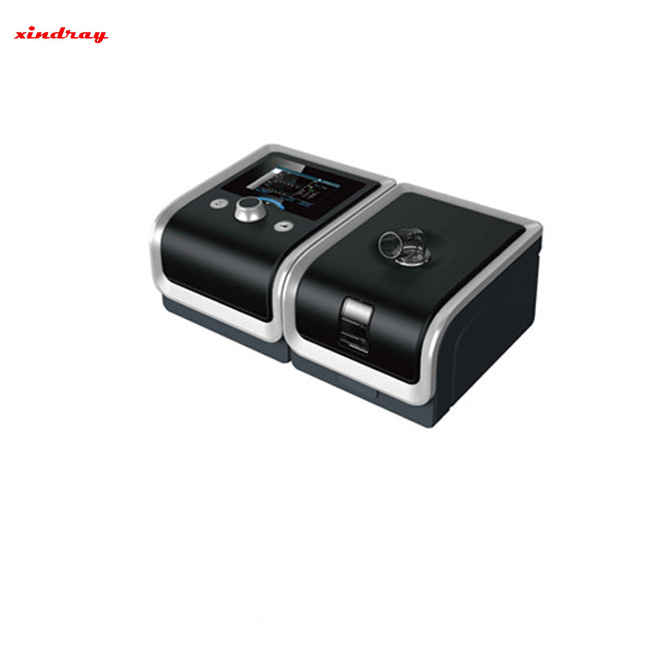

Non-invasive ventilator CNME-30T is Bi-level PAP (Bi-level Positive Airway Pressure) device intended to provide non-invasive ventilation for patients with Respiratory Insufficiency. It is intended for adult patients by prescription in the home or hospital/institutional environment. With its Target Tidal Volume function and other excellent comfort features and effective performance, it offers each patient personalized ventilation support.
Technical Specifications:
General Info | Dimensions: 170 mm × 180 mm × 118 mm 290 mm × 180 mm × 134 mm (with the humidifier) Weight: 1.5 kg 2.5 kg (with the humidifier) Water capacity: 350 mL at recommended water level |
Ramp | The ramp time ranges from 0 to 60 minutes |
Humidifier | Humidifier Settings: off, 1 to 5 (95°F to 167°F / 35°C to 75°C) Humidifier Output: No less than 10 mg H2O/L |
SpO2 | Range: 0 to 100% |
Pulse Rate | Range: 40 to 240BPM |
Sound Pressure Level | <30dB, when the device is working at the pressure of 10hPa |
Storage | SD card can record patient data and fault information |
AC Power Consumption | 100-240VAC, 50/60Hz, Max 2A |
Key Parameters | Target Vt: On/off 150~1500mL Reslex: Patient, Off, 1~3 I Sens: 1~8 E Sens: 1~8 Res Rate: 3~40 BPM Ti: 0.3~3.0s Rise Time: 1~4 |
